RX2530 M4 Upgrade and Maintenance Manual 149
Hard disk drive (HDD) / solid state drive (SSD)
7.4.2 Configuration with up to eight HDD/SSD modules
I SAS HDDs must not be populated above or below BC-SAS / BC-SATA
HDDs. In order to avoid this configuration, please make a free bay
intentionally.
For example, if only one SAS HDD or one BC-SAS / BC-SATA HDD is
ordered, this HDD will be installed in position 0 and position 1 will not be
used.
SAS HDDs and BC-SAS / BC-SATA HDDs can be mixed as long as SAS
HDDs are not populated above or below BC-SAS / BC-SATA HDDs.
The same kind of HDDs can be populated above or below each other.
Configuration with onboard SATA/sSATA controller

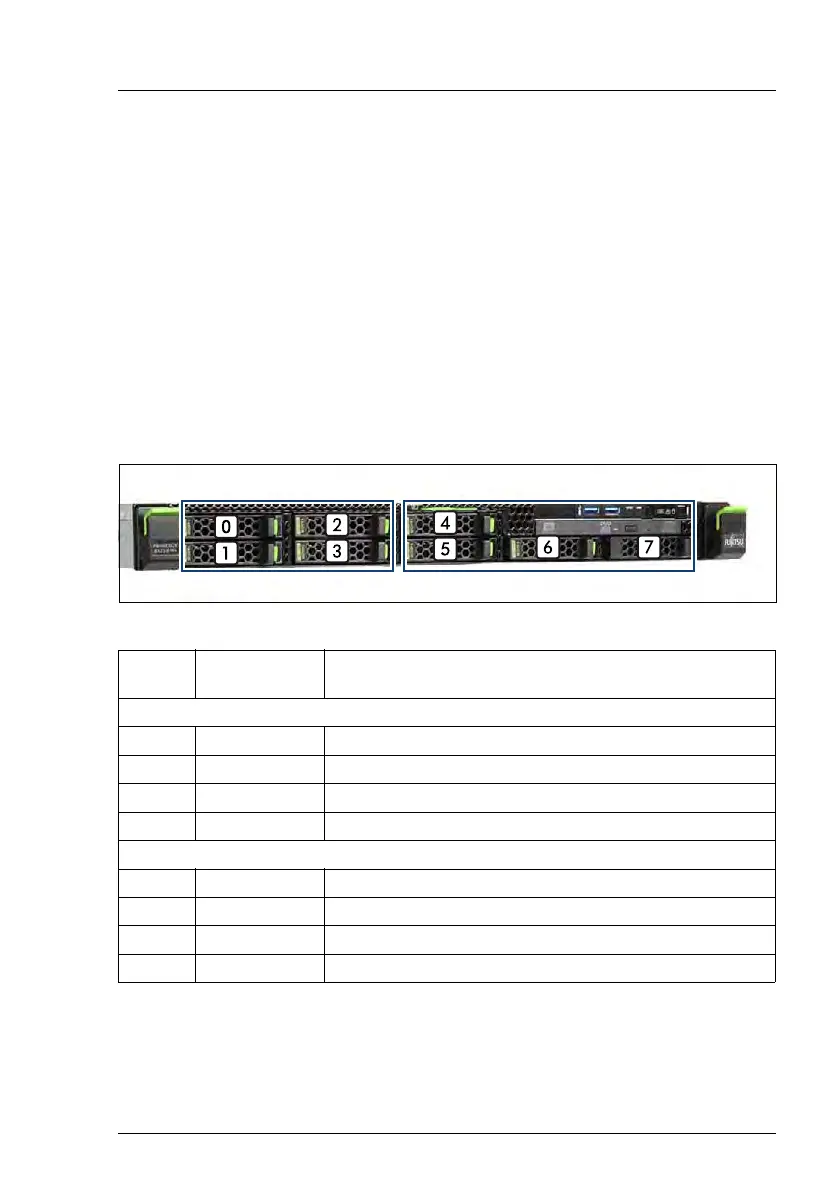

Figure 66: Configuration with up to eight HDDs/SSDs (onboard controller)
Position
Logical drive
number
ServerView RAID Manager display name
LSI Embedded MegaRAID (0)
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
LSI Embedded MegaRAID (1)
[4] 4 Vendor Product (0)
[5] 5 Vendor Product (1)
[6] 6 Vendor Product (2)
[7] 7 Vendor Product (3)
Onboard SATA controller Onboard sSATA controller
