64 Upgrade and Maintenance Manual RX2530 M4
Basic hardware procedures
4.6.2 Connecting the power cord (DC PSU)
Example DC PSU -48 V
V CAUTION!
The DC PSU adjusts automatically to any power voltage in the range
from -40.5 V - -57 V. You may only operate the server if its rated voltage
range corresponds to the local mains voltage.

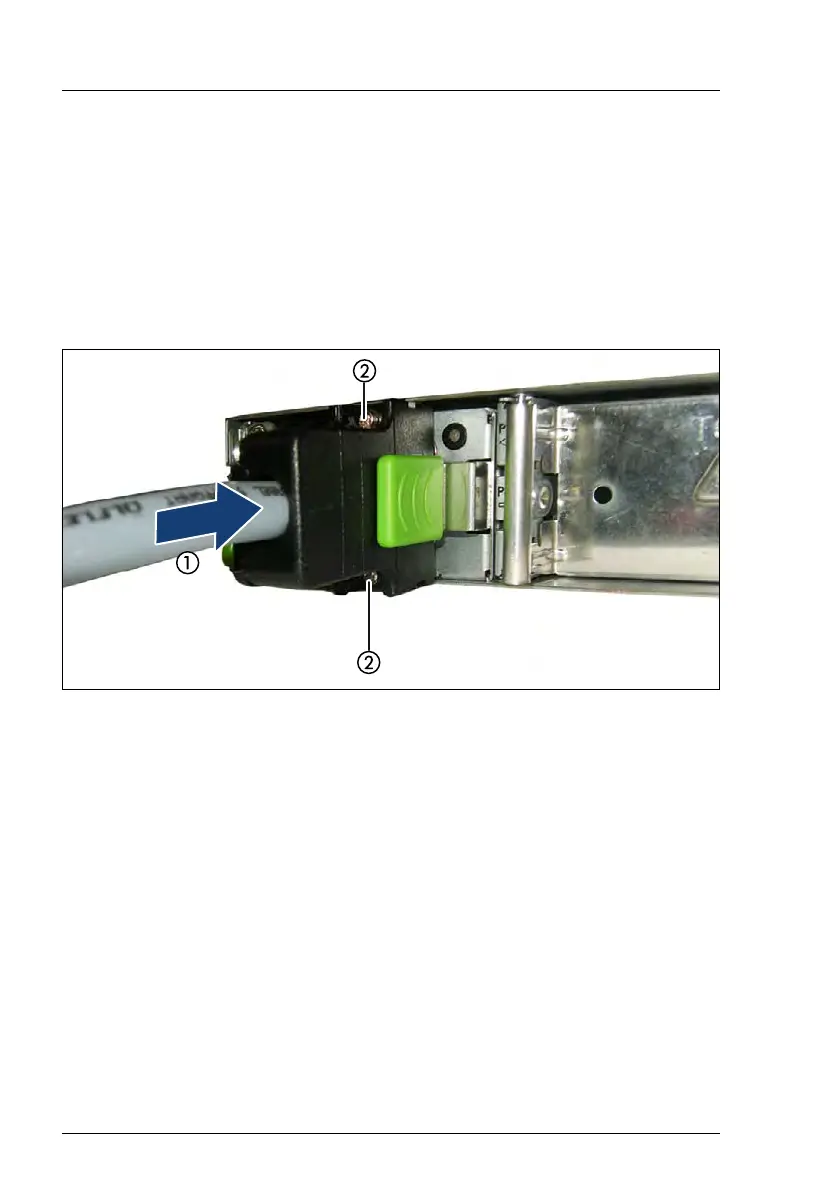

Figure 16: Connecting the server to the DC voltage - example DC PSU -48 V
Ê Connect the power cord to the PSU (1).
Ê Fasten the two screws (2).
Ê Ensure that the status indicator on the PSU is lit green, see section
"Indicators on PSUs (hot-plug PSUs)" on page 431.
Ê If necessary, make a permanent connection to the distribution board.
V CAUTION!
If the server/rack is intended for permanent connection to the mains
only an authorized specialist (electrician) is allowed to work.
Please follow the regulation of each country.
I It will take about 60 seconds until the server can be powered on.
