RX2530 M4 Upgrade and Maintenance Manual 249
Expansion cards and backup units
9.5.8 Upgrading to the full height riser module

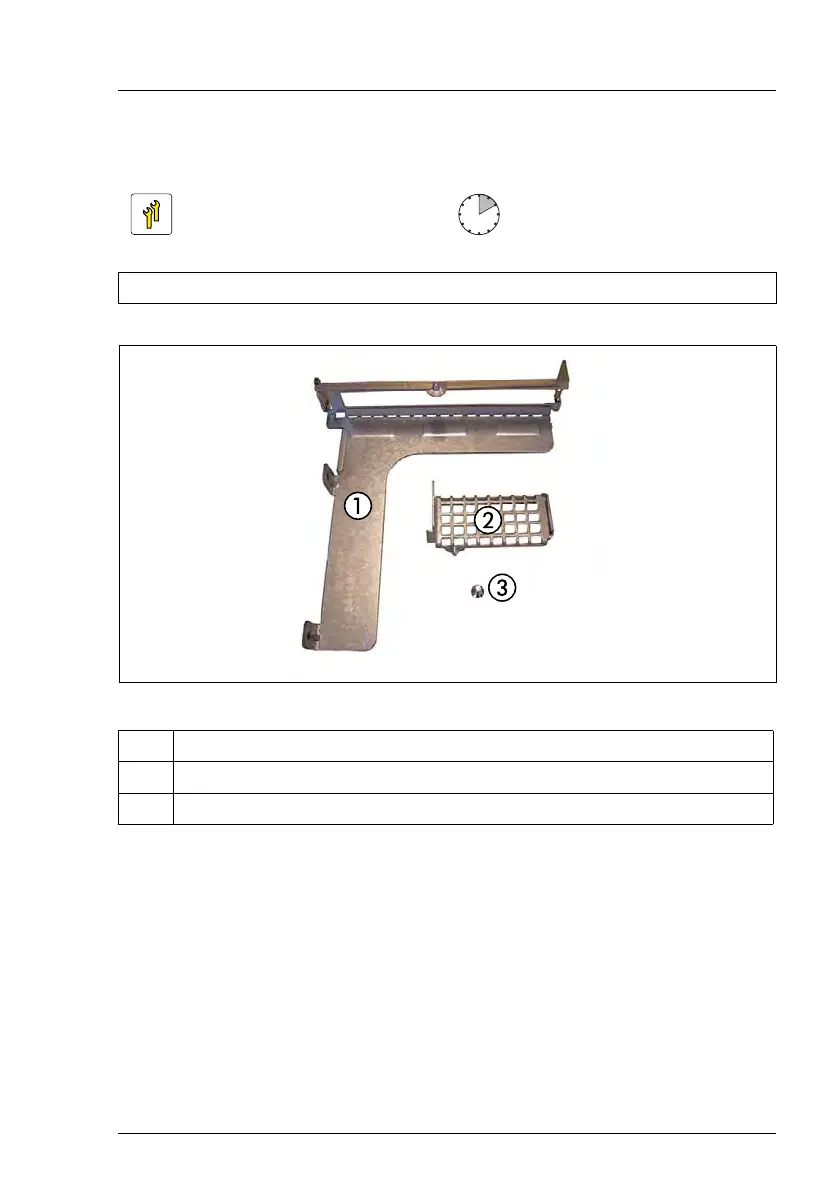

Figure 165: Upgrade kit
9.5.8.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê Remove the riser module 2 and the riser module 3, see section "Handling
riser modules" on page 67.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
1 Full height riser module
2 Extension bracket
3Screw
