RX2530 M4 Upgrade and Maintenance Manual 57
Basic hardware procedures
4.5 Reassembling
V CAUTION!
● Before attaching the covers, make sure no unnecessary parts or tools
are left inside the server.
● The top cover must be replaced as soon as possible for purposes of
cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
● For more information, see chapter "Important information" on
page 35.
4.5.1 Installing the top covers
Installing the fan cover

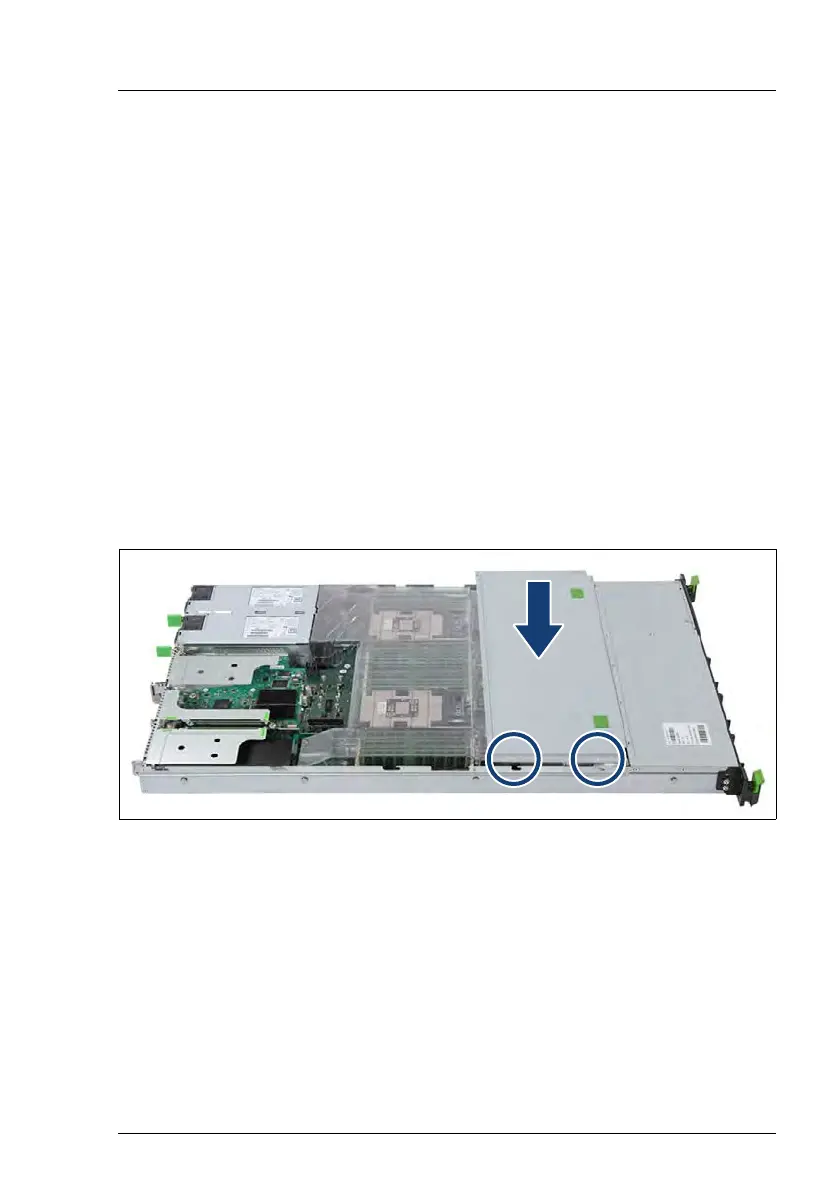

Figure 9: Attaching the fan cover (A)
Ê Place the fan cover on the server. Notice the recesses (see circles).
V CAUTION!
Take care that all cables are inside the chassis.
