250 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
9.5.8.2 Installing the upgrade kit

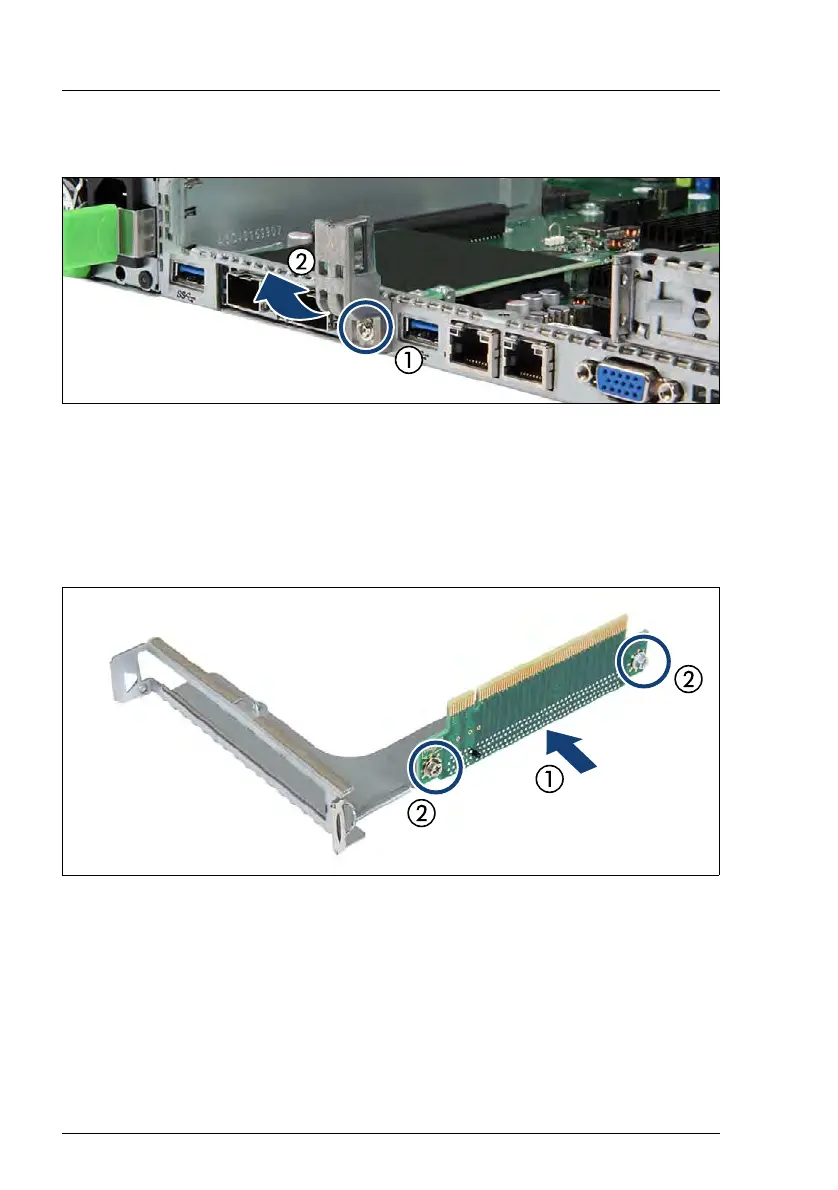

Figure 166: Removing the riser module support
Ê Remove the screw (1).
Ê Remove the riser module support (2).
Ê Remove the riser card from riser module 3, see section "Removing the
defective riser card" on page 243.
Figure 167: Installing the riser card - example full height riser module
Ê Insert the riser card (1).
Ê Fasten the riser card with two screws (2).
Ê If applicable, install a full height slot bracket to the expansion card, see
section "Installing a slot bracket" on page 204.
