RX2530 M4 Upgrade and Maintenance Manual 255

Expansion cards and backup units

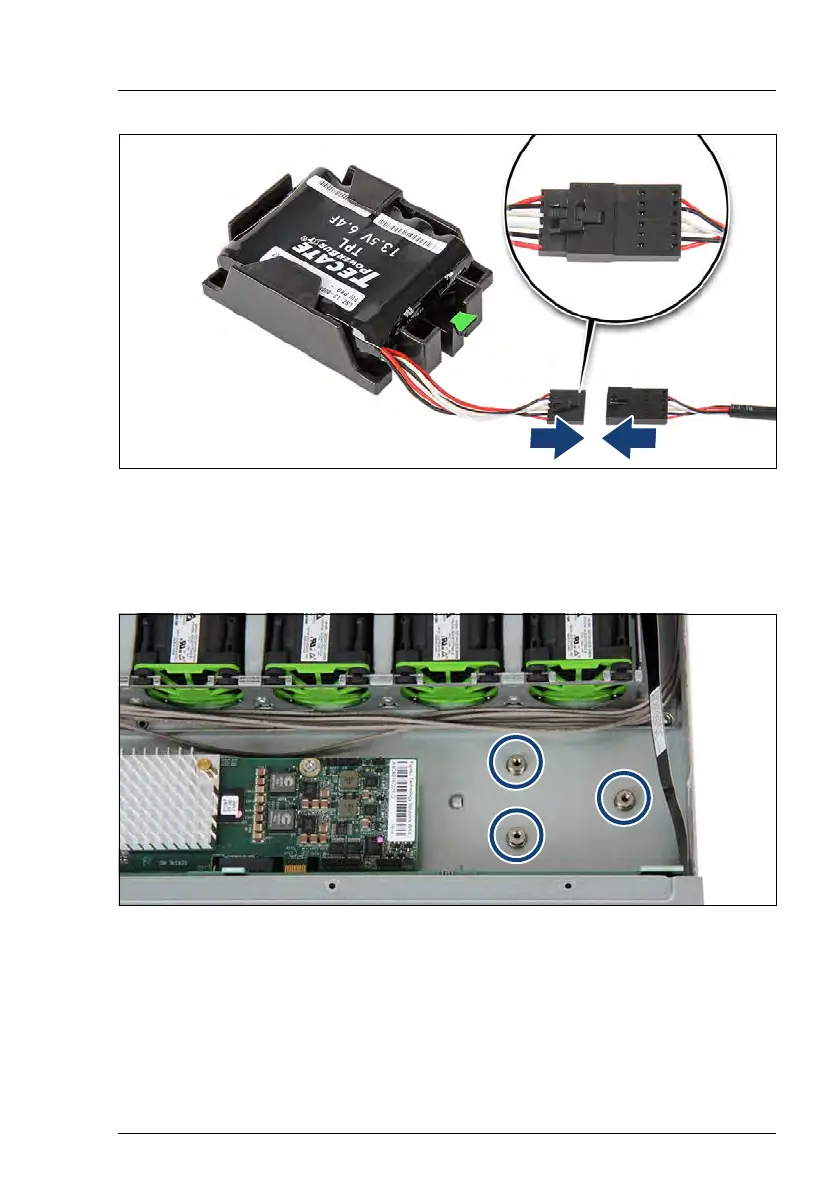

Figure 173: Connecting the FBU cable to the FBU

Ê Connect the cable end on the FBU to the FBU cable as shown.

9.6.1.3 Installing the FBU

Figure 174: Position of the shoulder screw caps
