Fujitsu PRIMERGY RX2530 M4

256 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units

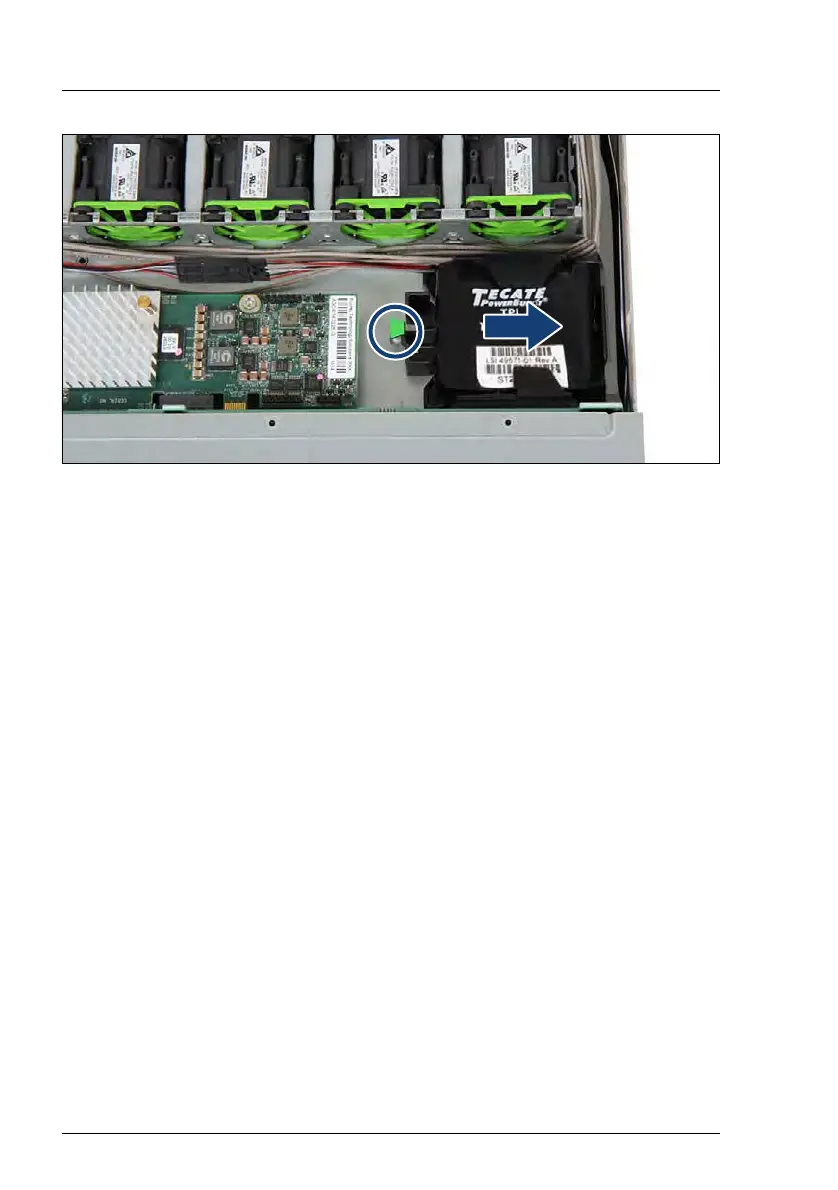

Figure 175: Installing the FBU with the holder
Ê Insert the holder into the chassis so that the three shoulder screw caps on
the chassis floor rest in the wide ends of the keyhole slots on the holder.
Ê Slide the holder in direction of the arrow.
The shoulder screw caps on the chassis floor will lock in the narrow ends of
the keyhole slots on the holder.
Ê Ensure that the locking handle on the holder properly snaps in place (see
circle).
Ê If applicable, install the TFM, see section "Installing the new TFM" on
page 247.
Ê Connect the FBU cable to the TFM, see section "Installing the new TFM" on
page 247.
Ê Install the RAID controller, see section "Installing an expansion card" on
page 221.
