Hard disk drive (HDD) / solid state drive (SSD)
7.3.2.3 Installing a 3.5-inch HDD module

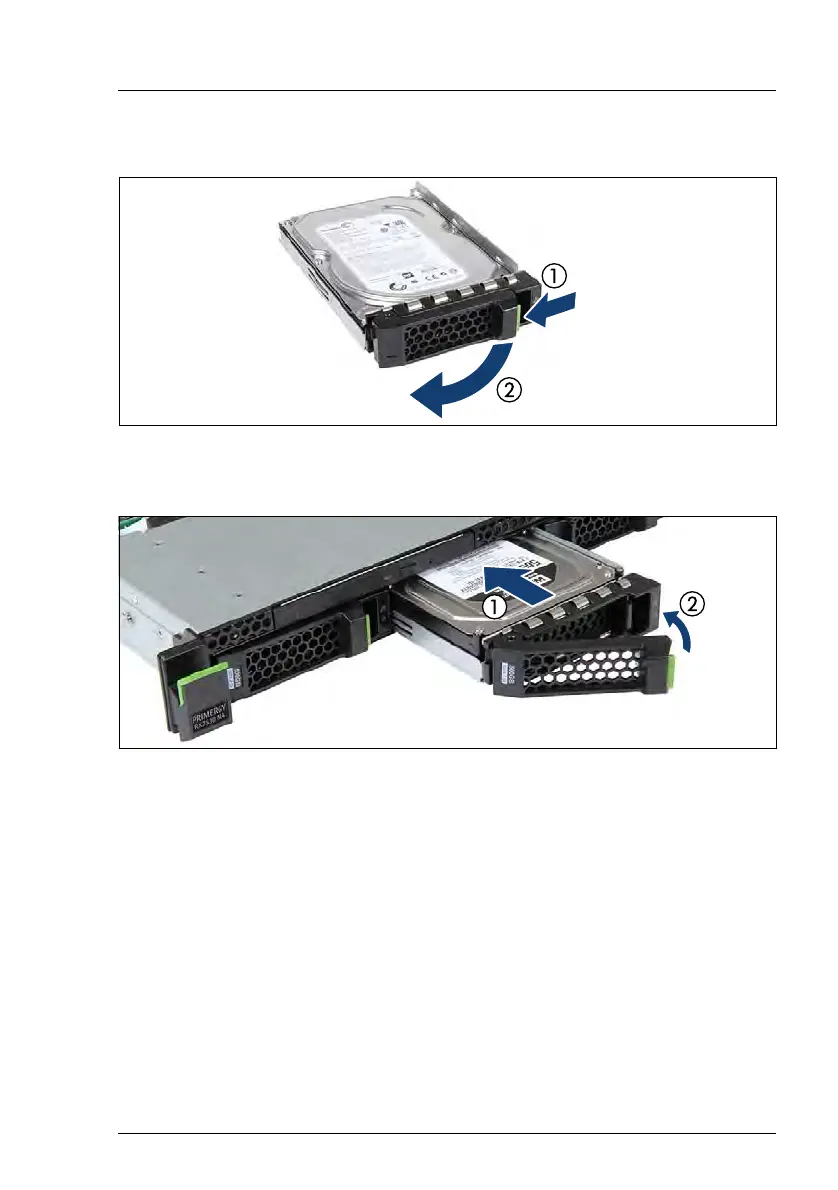

Figure 57: Opening the 3.5-inch HDD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
Figure 58: Installing the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Close the locking lever to lock the HDD module in place (2).
Ê When using a RAID array, add the additional HDD to the RAID array.
I Configuring the RAID array, refer to the documentation of the RAID
controller, used in your configuration, see section "Documentation
overview" on page 31.
7.3.2.4 Concluding steps
Ê No steps needed.
