Basic hardware procedures
4.10 Handling the air duct
4.10.1 Removing the air duct

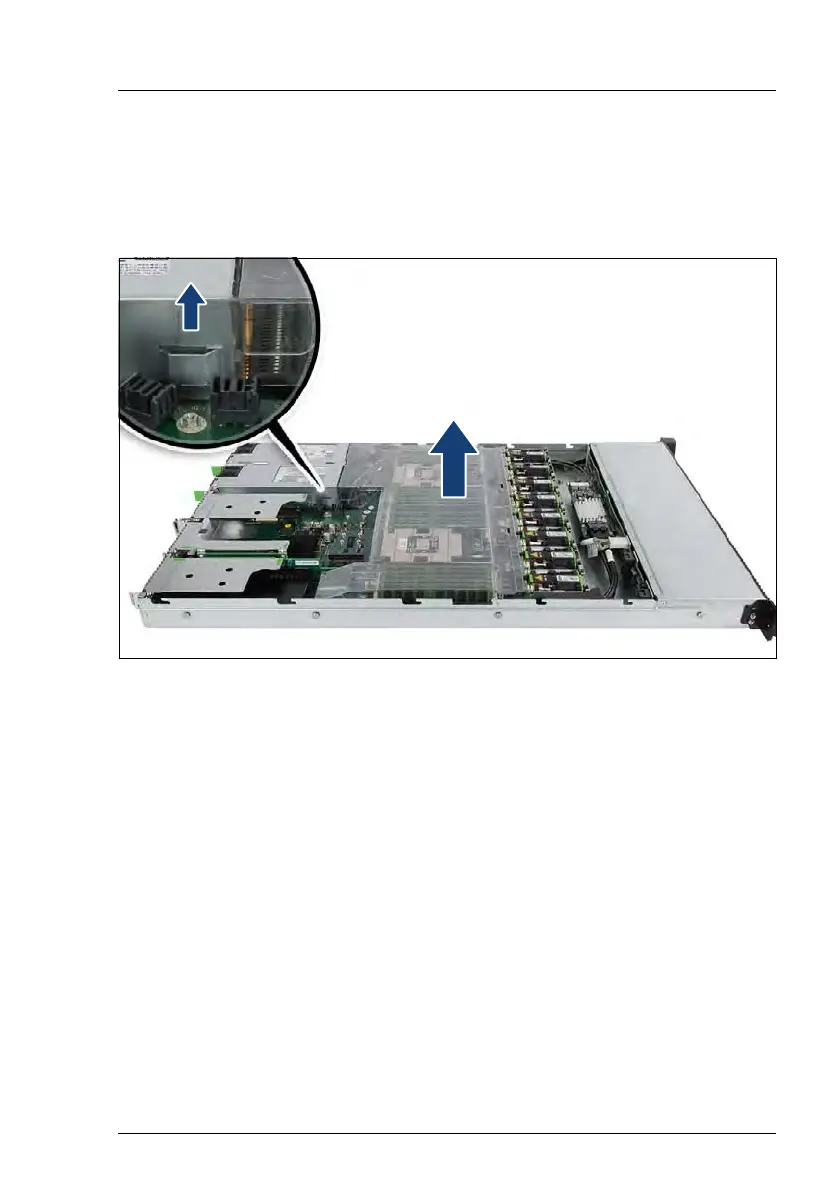

Figure 27: Removing the air duct
Ê Pull the hook on the left side out of the bracket on the PSU cage (see close-
up).
Ê Carefully pull out the air duct upward.
