RX2530 M4 Upgrade and Maintenance Manual 53
Basic hardware procedures
4.4.1 Extending the server out of the rack
V CAUTION!
● Use the anti-tilt plate to prevent the rack from tipping when installing
the rack. Pulling the server out of the rack without having installed the
anti-tilt plate may cause the rack to tip over.
● Be careful not to pinch fingers or clothes when sliding out the server
or pushing it back. Failure to do so may cause injury.
● For more information, see chapter "Important information" on
page 35.
Ê Remove all remaining external cables from the I/O panel and expansion
cards.

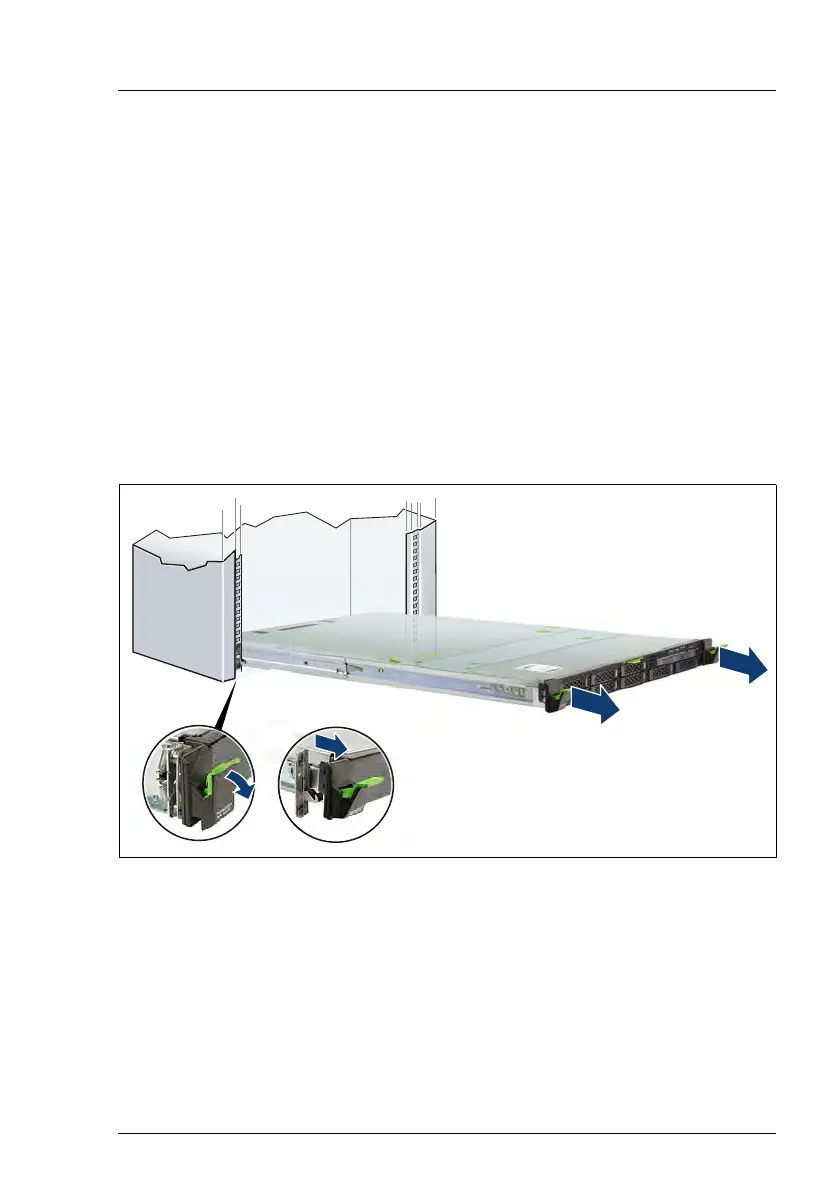

Figure 5: Extending the server out of the rack
Ê Fold down the two quick release levers (1).
Ê Pull the server out of the rack until it locks in place (2).
V CAUTION!
Do not use the extended server as a surface on which to put things
or as a work surface, and strictly avoid leaning on or against it.
햳
햳
햲
