174 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)

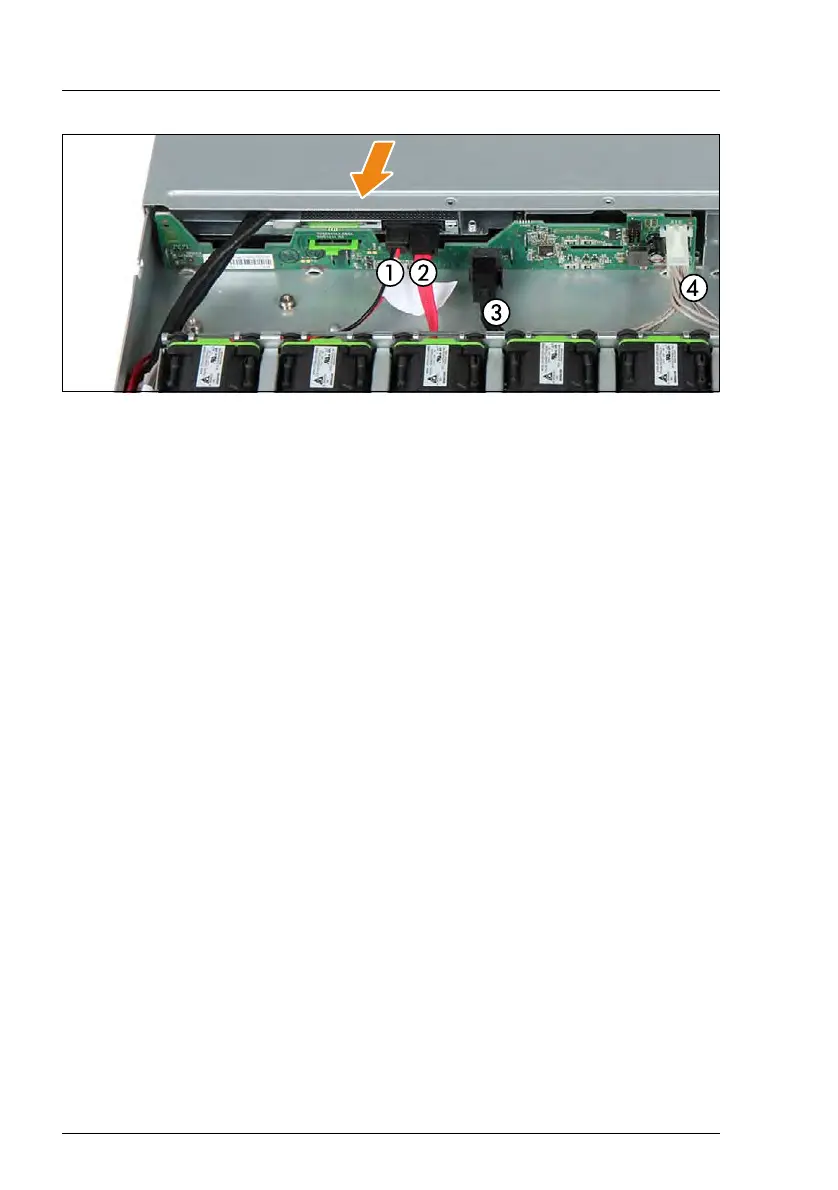

Figure 87: Connecting the cables to the ODD and the 4x 2.5-inch HDD backplane
Ê If applicable, push the ODD in its bay until the ODD latch engages (see
orange arrow).
Ê Connect the following cables to the ODD and the HDD backplane:
– (1) power cable to ODD (if applicable)
– (2) SATA cable to ODD (if applicable)
– (3) SAS cable to connector "X5" on the HDD backplane
– (4) power cable to connector "PWR (X10)" on the HDD backplane
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane (see figure 84).
For the cable plan, see chapter "Appendix B" on page 437.
7.4.11.4 Concluding steps
Ê Insert all HDD/SSD modules, see section "Installing a 2.5-inch HDD/SSD
module" on page 157.
I Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
Ê Insert all dummy modules, see section "Installing a 2.5-inch HDD/SSD
dummy module" on page 160.
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
