180 Upgrade and Maintenance Manual RX2530 M4
Hard disk drive (HDD) / solid state drive (SSD)
7.4.12.1 Preliminary steps
Ê "Locating the defective server" on page 47
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê Release all HDD/SSD modules and pull them out a few centimeters, see
section "Removing a 2.5-inch HDD/SSD module" on page 160.
V CAUTION!
The HDD/SSD modules need not to be removed completely. But if
you want to remove them nevertheless, check if all HDD/SSD
modules are uniquely identified so that you can reinsert them into
their original bays.
Ê Release all dummy modules and pull them out a few centimeters, see
section "Removing a 2.5-inch HDD/SSD dummy module" on page 156.
7.4.12.2 Disconnecting cables
Ê Disconnect all SAS/Oculink cables from the HDD backplane.
Ê Disconnect all power cables from the HDD backplane.
Ê If applicable, remove the OOB cable from the HDD backplane, too.
7.4.12.3 Removing the SAS expander board (if applicable)

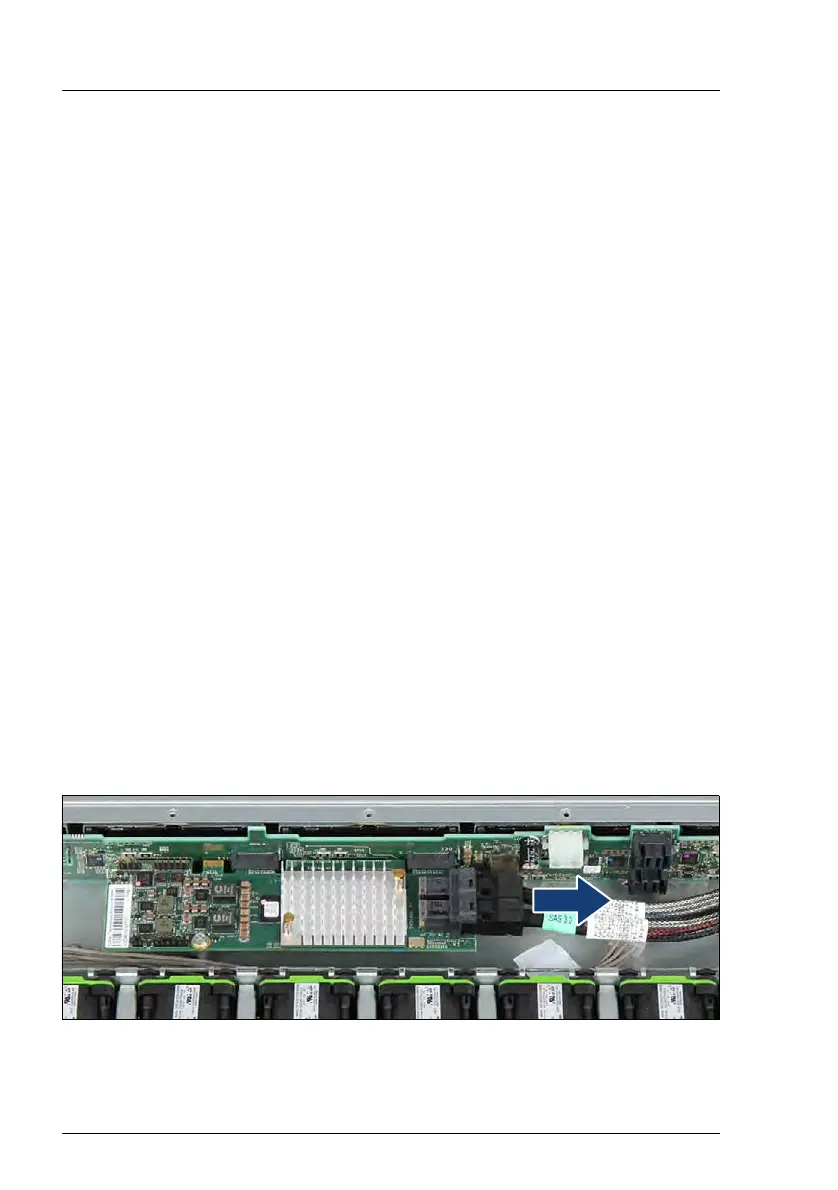

Figure 91: Disconnecting SAS cables
Ê Disconnect the two SAS cables from the SAS expander board.
