RX2530 M4 Upgrade and Maintenance Manual 181
Hard disk drive (HDD) / solid state drive (SSD)

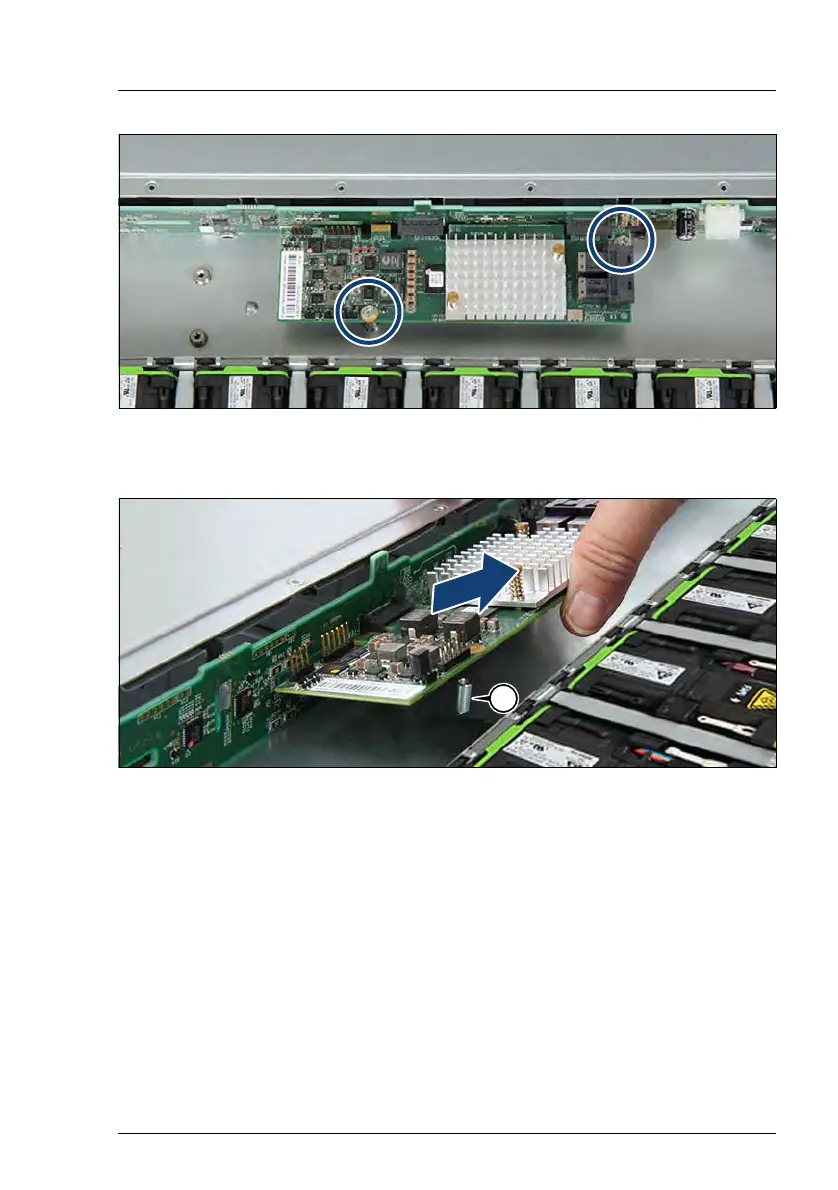

Figure 92: Removing the SAS expander board (A)
Ê Remove the two screws (see circles).
Figure 93: Removing the SAS expander board (B)
Ê Get the SAS expander board out of the two connectors of the HDD
backplane and remove it.
V CAUTION!
Lift up the SAS expander board while removing it in order to prevent
the components to be damaged by the stand-offs (see A in figure 93)
of the chassis.
