RX2530 M4 Upgrade and Maintenance Manual 175
Hard disk drive (HDD) / solid state drive (SSD)
7.4.12 Replacing a 10x 2.5-inch HDD backplane
There are different 10x 2.5-inch HDD backplanes available. The procedure of
replacing differs only in connecting cables.

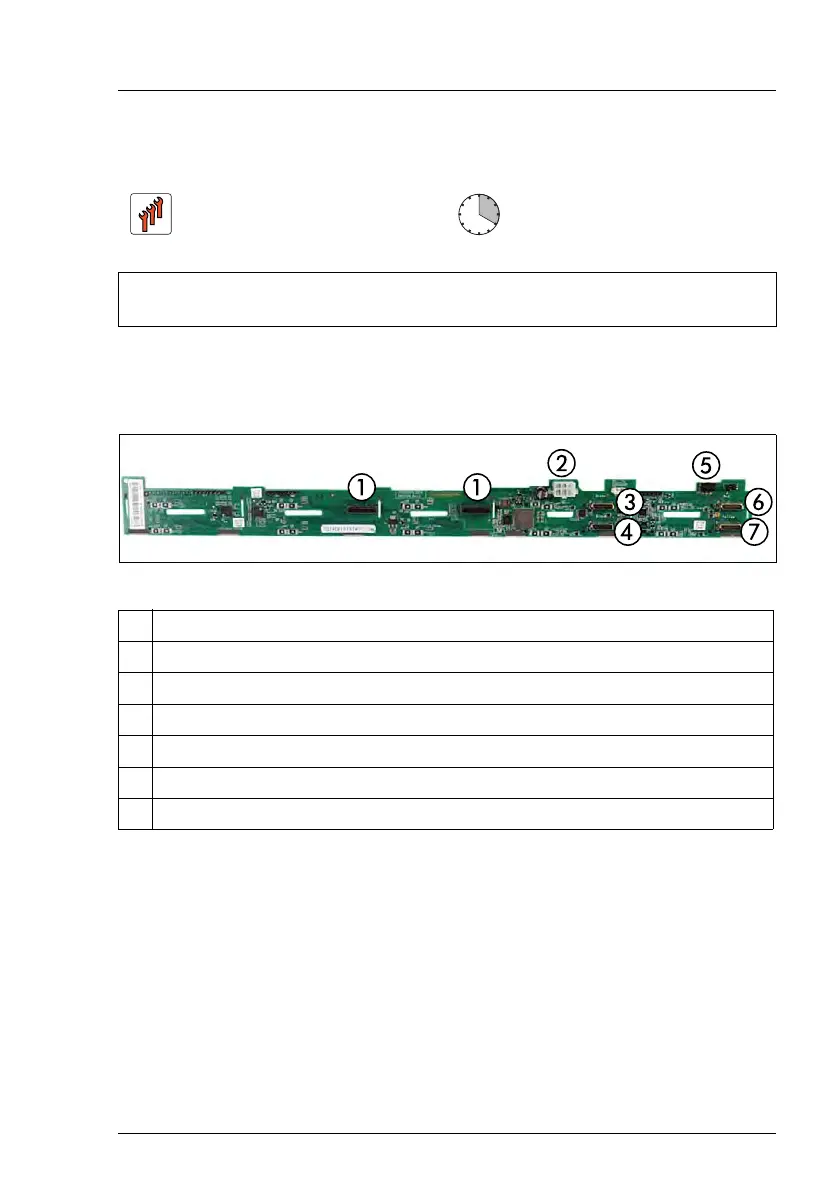

Figure 88: 10x 2.5-inch HDD backplane (Combo)
Field Replaceable Unit
(FRU)
Hardware: 15 minutes
Software: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver (for removing/installing SAS
expander board)
1 Connectors for SAS expander board
2 Power connector
3 Connector for Oculink cable (green)
4 Connector for Oculink cable (black)
5 Connector for OOB cable
6 Connector for Oculink cable (red)
7 Connector for Oculink cable (yellow)
