244 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
9.5.6.3 Installing the new riser card

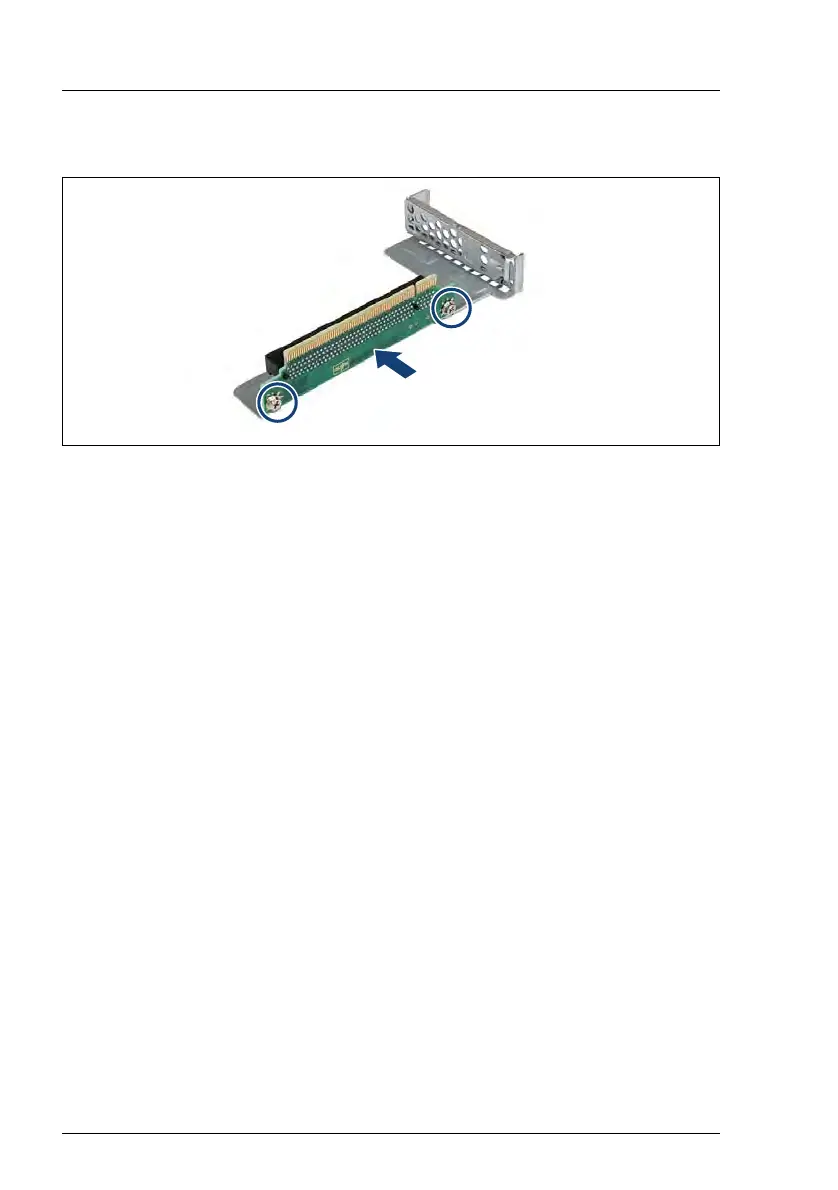

Figure 159: Installing the riser card - example riser module 2
Ê Insert the riser card.
Ê Fasten the riser card with two screws (see circles).
Ê Install the expansion card, see section "Installing the expansion card" on
page 222.
9.5.6.4 Concluding steps
Ê Install the corresponding riser module, see section "Handling riser modules"
on page 67.
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 63
Ê "Switching on the server" on page 66
