6.3.2.3 Installing the dummy cover

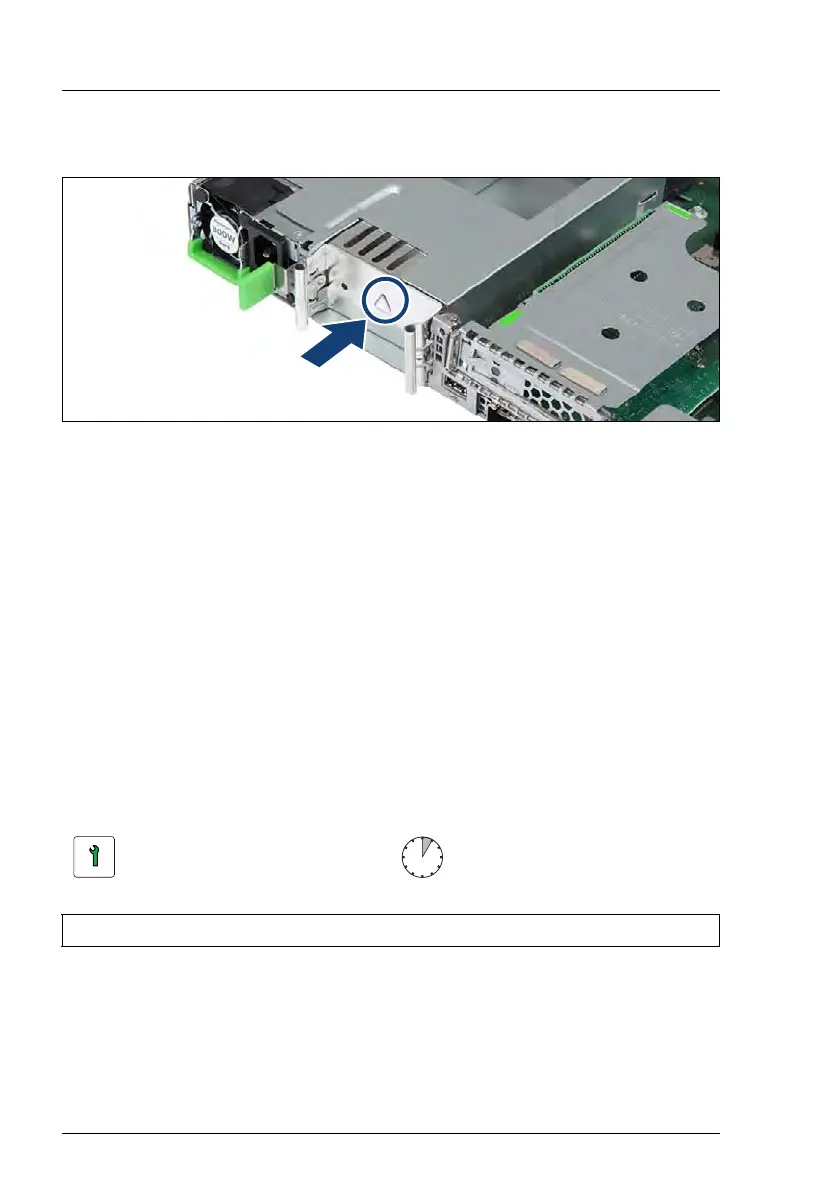

Figure 47: Installing the dummy cover
Ê Insert the dummy cover into the empty bay with the impressed arrow symbol
facing to the top (see circle).
Ê Push the dummy cover into its bay until it locks in place.
V CAUTION!
Always install dummy covers into unused bays to comply with
applicable EMC regulations and satisfy cooling requirements.
6.3.2.4 Concluding steps
No steps needed.
6.3.3 Replacing the FJBU
Note for servers using CMA (Cable Management Arm)
Regarding of replacing the FJBU, additional tasks are needed, due to an
interference between CMA stopper and the FJBU.
Ê Push the lock spring inward to unlock the CMA stopper (see figure 39).
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
