RX2530 M4 Upgrade and Maintenance Manual 169
Hard disk drive (HDD) / solid state drive (SSD)
7.4.10.2 Removing the defective 4x 2.5-inch HDD backplane

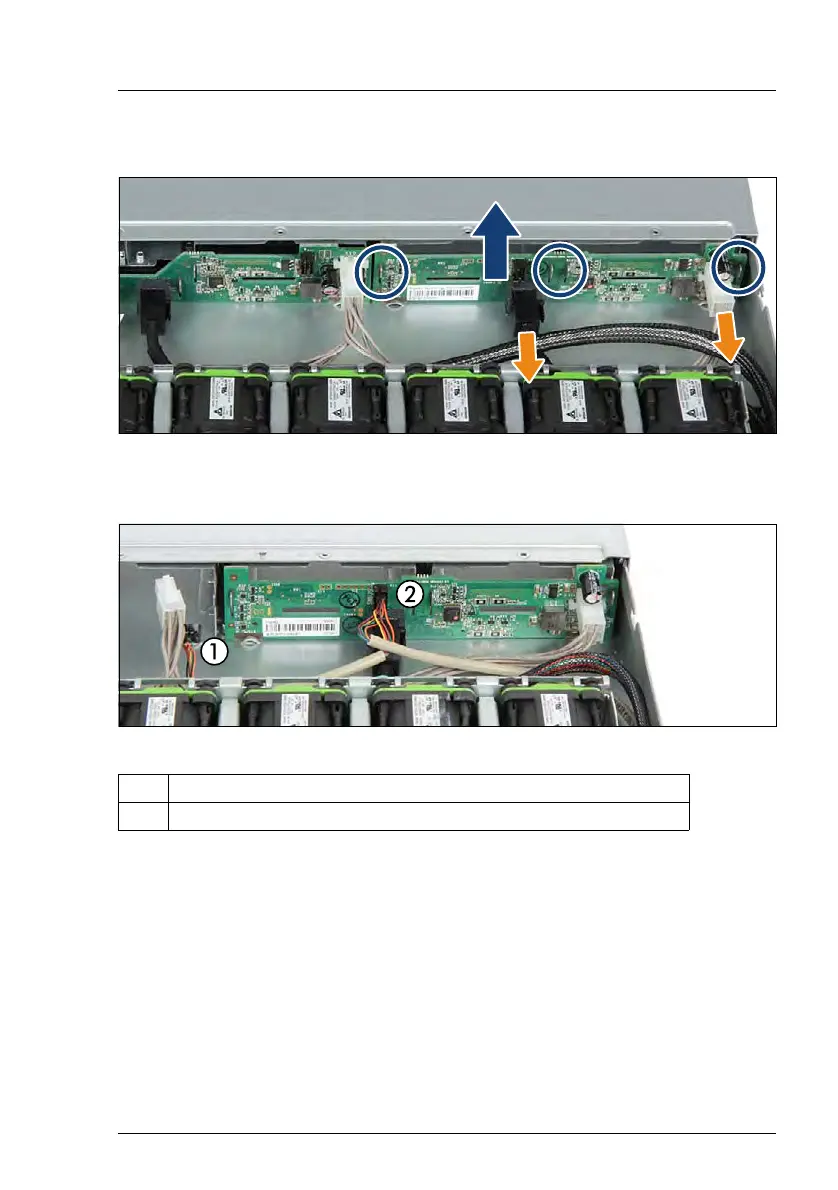

Figure 80: Removing the 4x 2.5-inch HDD backplane
Ê Disconnect all cables from the HDD backplane (see orange arrows).
Figure 81: Disconnecting the OOB cable - one HDD backplane
Ê If applicable, remove the OOB cable (see figure 81) from the HDD
backplane, too.
Ê Pull the HDD backplane upward until the four hooks disengage (see circles
in figure 80).
Ê Take out the HDD backplane.
1 Connector left side HDD backplane or free
2 Connector right side HDD backplane
