RX2530 M4 Upgrade and Maintenance Manual 219
Expansion cards and backup units
9.5 Expansion cards and riser cards
I Note for riser module 1:
– A controller in slot 1 needs no slot bracket and is fastened with two
knurled screws to the riser module 1 holder. In newer systems there
may be washers between knurled screw and riser module holder (see
close-up in figure 131).
– Between slot 1 and slot 2 an insulating foil has to be installed. This
insulating foil is part of the delivery.

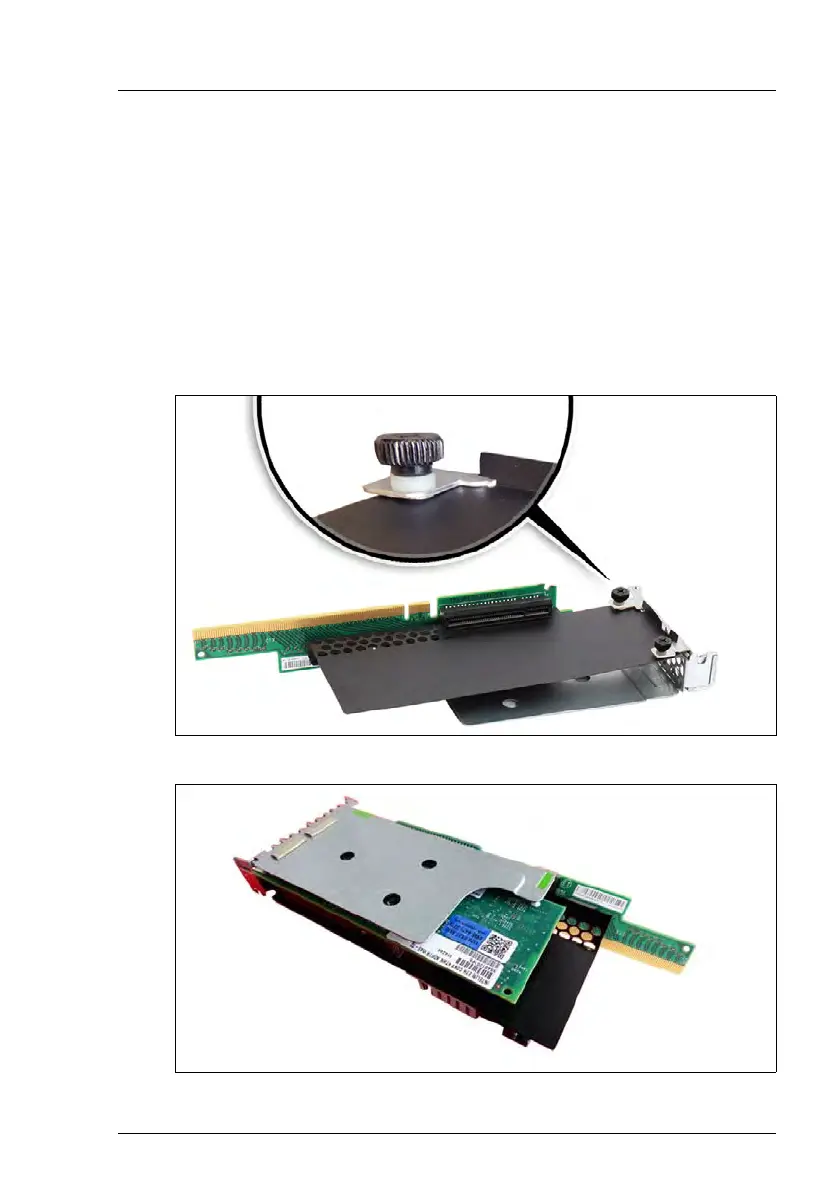

Figure 131: Riser module 1 with insulating foil and washers
Figure 132: Riser module 1 with two controller installed
