RX2530 M4 Upgrade and Maintenance Manual 221
Expansion cards and backup units
9.5.1 Installing an expansion card
I After installing an EP5x0i controller with the intention to replace the
Oculink onboard controller, never forget to change the system
information using the Chassis ID Prom Tool.
9.5.1.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 77
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê Remove the corresponding riser module, see section "Removing a riser
module" on page 68.
9.5.1.2 Removing the slot cover (only slot 2-4)

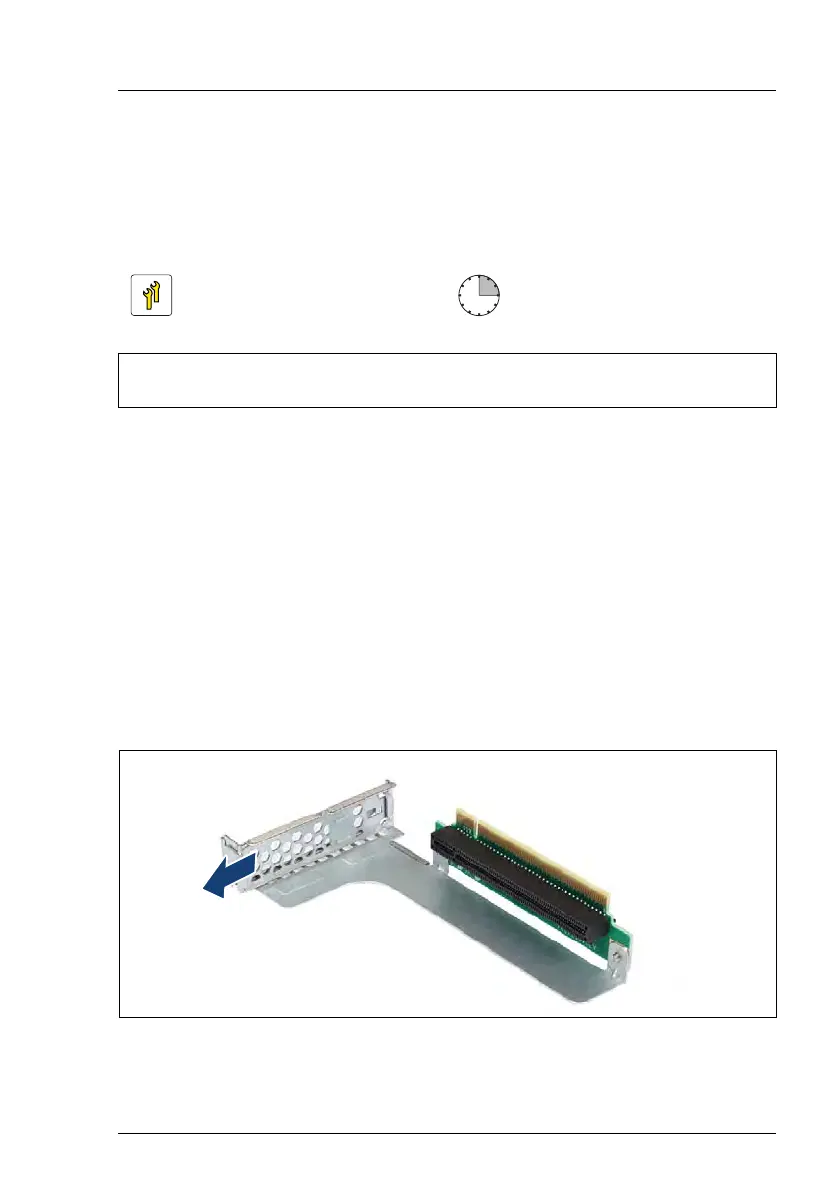

Figure 134: Removing the slot cover - example riser module 2
Ê Remove the slot cover.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Software: 5 minutes
Tools: slot 1: Phillips PH2 / (+) No. 2 screw driver
slot 2, slot 3, slot 4: tool-less
