Main memory

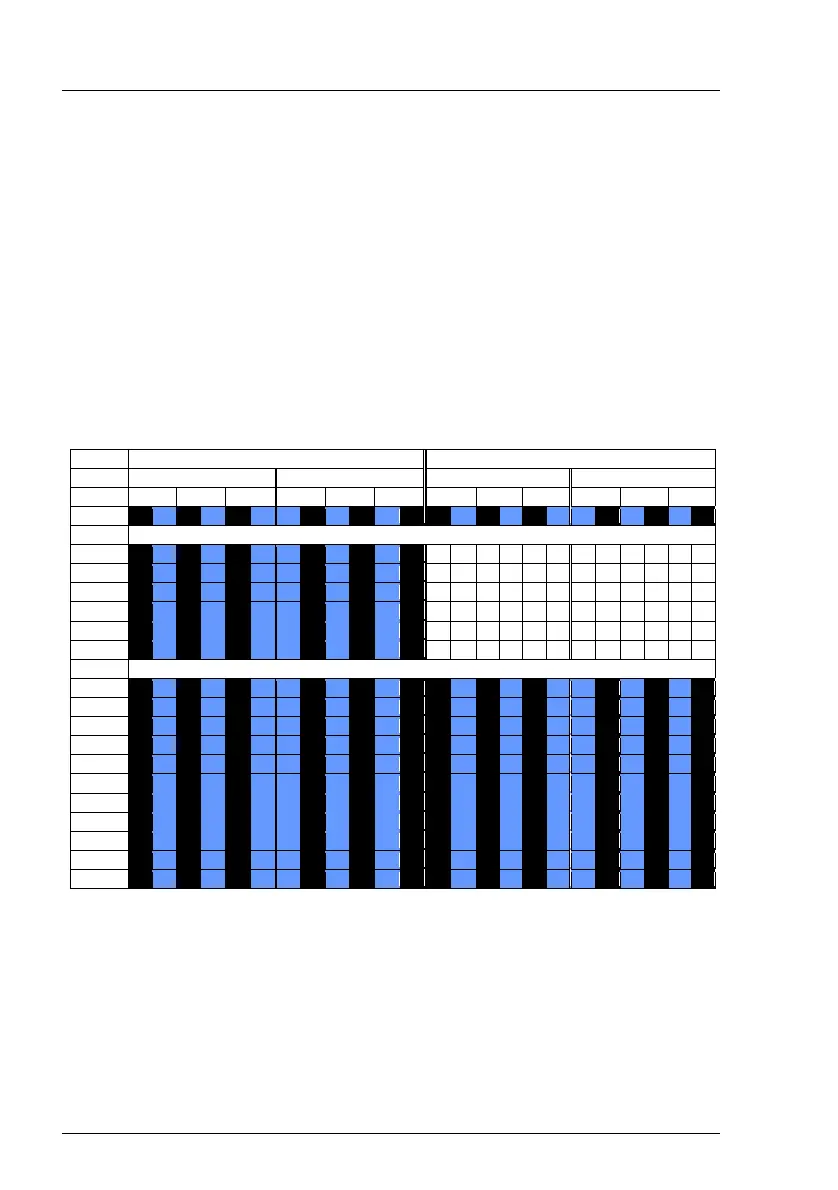

10.1.2.3 Rank Sparing mode
Single-rank RDIMMs
– Same letter represents identical DIMMs (capacity, rank).
– Configurations are defined that the waste for spare-memory is minimized;
performance is not prioritized, i.e. channels will be filled with two DIMMs
before populating new channel.
– "x" must always be DIMM with more ranks than "z".
– If both DIMMs have same number of ranks, "x" represents DIMM with higher
capacity.
CPU CPU1 CPU2
ctrl. iMC1 iMC0 iMC1 iMC0
channel F E D A B C M (F) L (E) K (D) G (A) H (B) J (C)
socket
1F 2F 1E 2E 1D 2D 2A 1A 2B 1B 2C 1C 1M 2M 1L 2L 1K 2K 2G 1G 2H 1H 2J 1J
#DIMMs 1 CPU populated
2 x x
4 x x x x
6 x x x x x x
8 x x x x x x x x
10 x x x x x x x x x x
12 x x x x x x x x x x x x
#DIMMs 2 CPUs populated
4) x x x x
6 x x x x x x
8 x x x x x x x x
10 x x x x x x x x x x
12 x x x x x x x x x x x x
14 x x x x x x x x x x x x x x
16 x x x x x x x x x x x x x x x x
18 x x x x x x x x x x x x x x x x x x
20 x x x x x x x x x x x x x x x x x x x x
22 x x x x x x x x x x x x x x x x x x x x x x
24 x x x x x x x x x x x x x x x x x x x x x x x x
