RX2530 M4 Upgrade and Maintenance Manual 251
Expansion cards and backup units

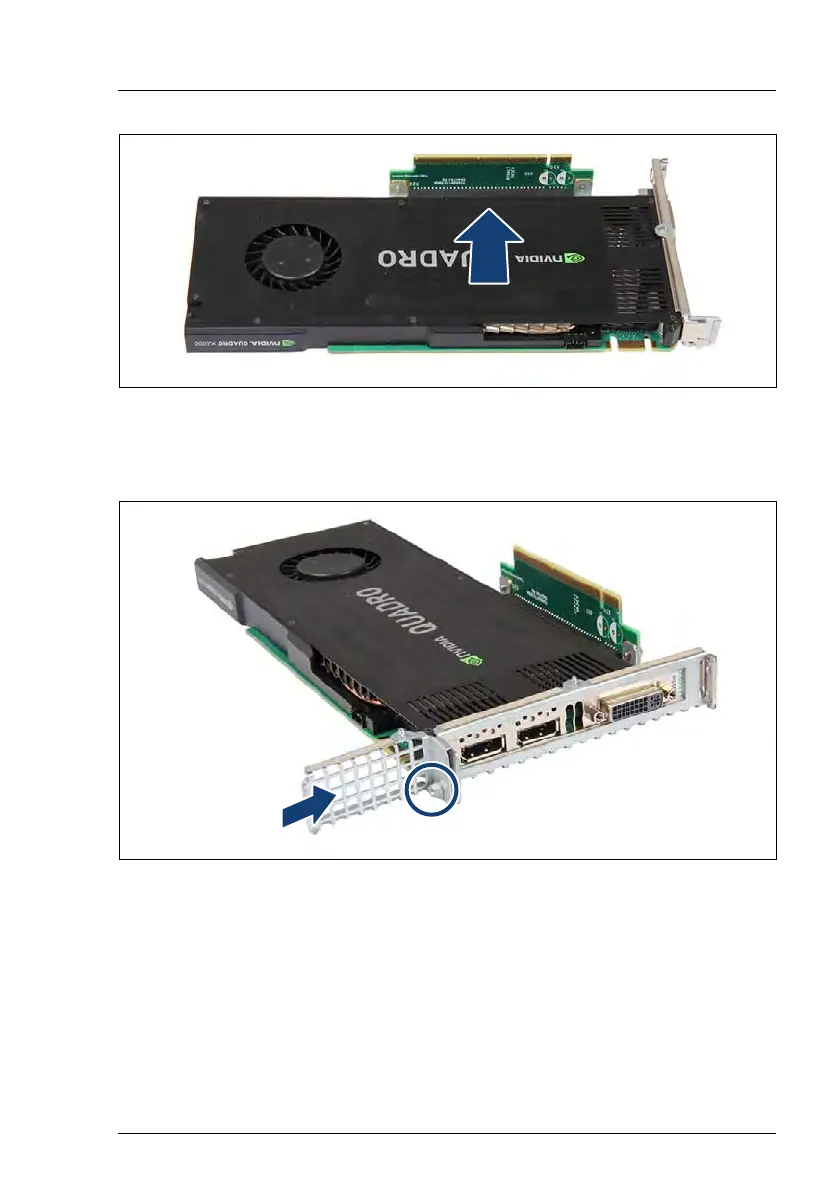

Figure 168: Installing the expansion card - example full height riser module
Ê Install the expansion card, see section "Installing the expansion card" on
page 222.
Figure 169: Installing the extension bracket
Ê Fasten the extension bracket with one screw to the full height riser module
(see circle).
