Fujitsu PRIMERGY RX2530 M4

252 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units

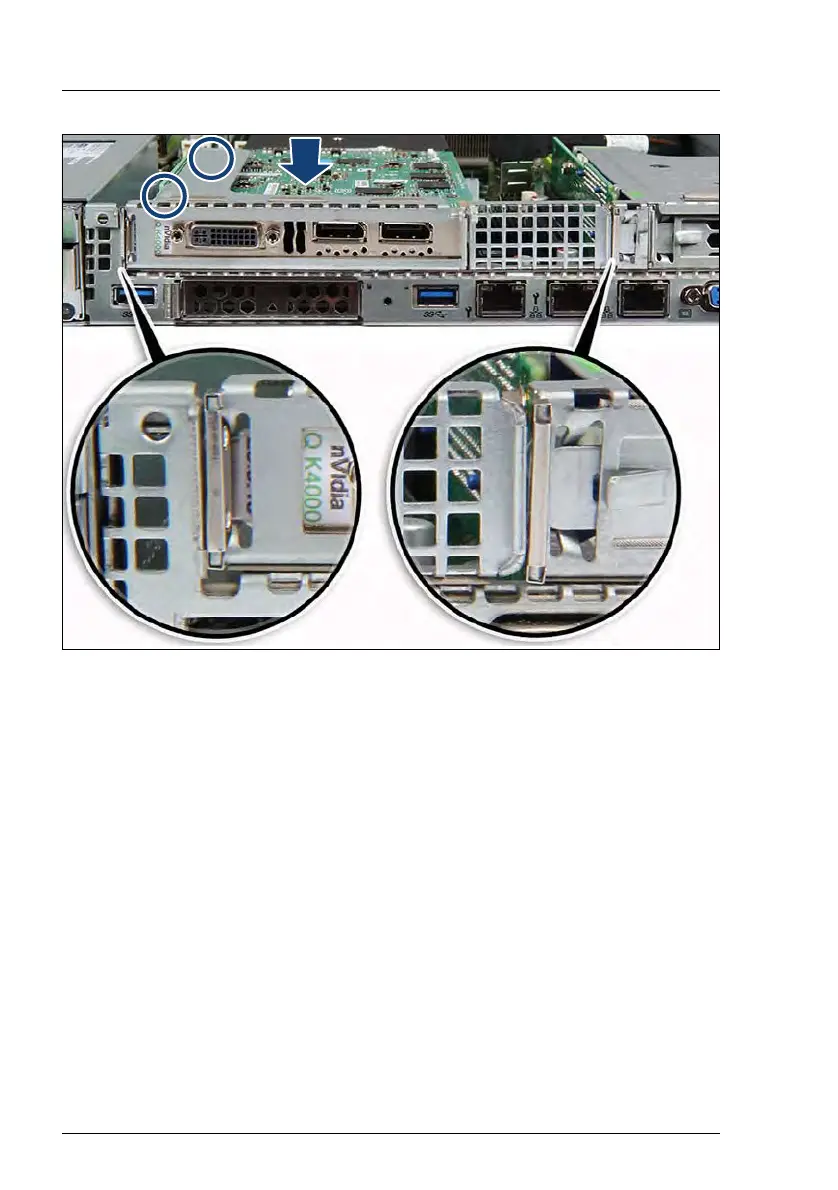

Figure 170: Installing the full height riser module
Ê Insert the riser card into the system board slot and press down the green
touch points (see circles).
V CAUTION!
Make sure that the EMC springs make contact correctly (see close-ups).
