Basic hardware procedures

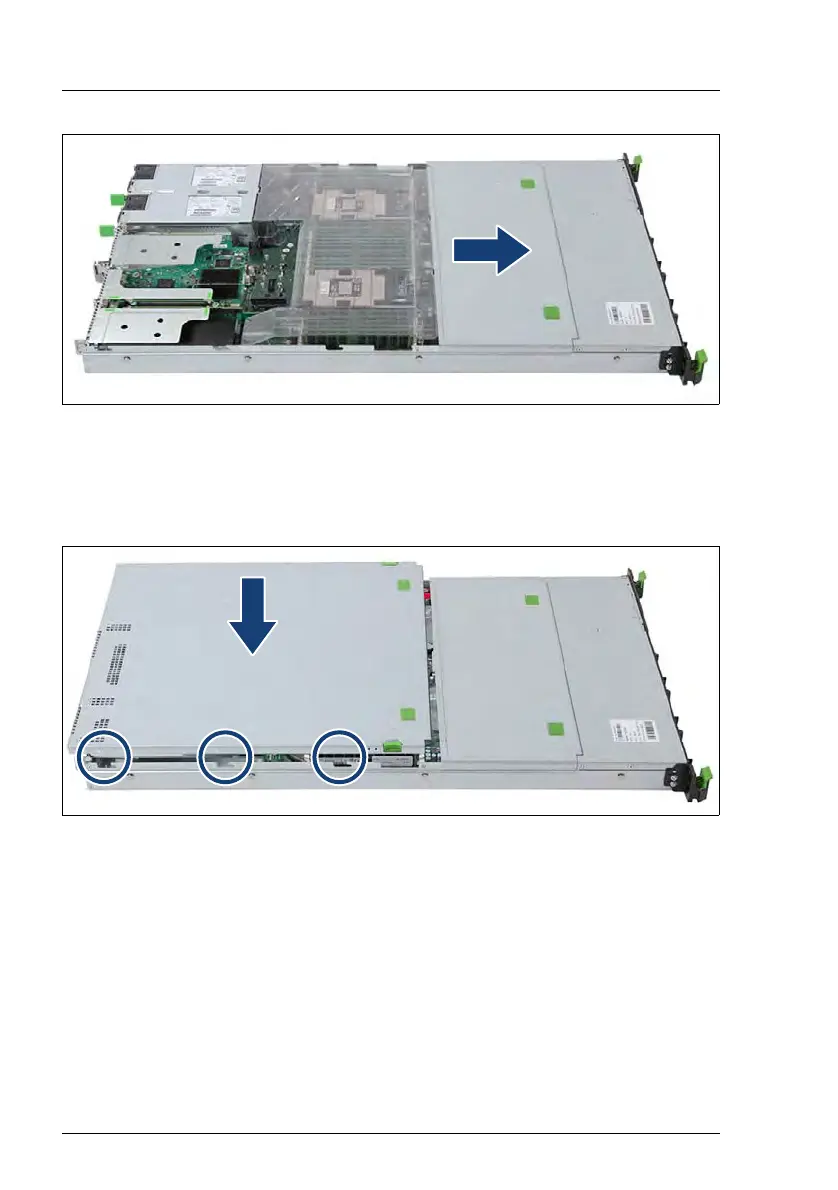

Figure 10: Attaching the fan cover (B)
Ê Push the fan cover as far as it will go in the direction of the arrow.
Installing the housing cover
Figure 11: Attaching the housing cover (A)
Ê Place the housing cover on the server. Notice the recesses (see circles).
V CAUTION!
Take care that all cables are inside the chassis.
