RX2530 M4 Upgrade and Maintenance Manual 59

Basic hardware procedures

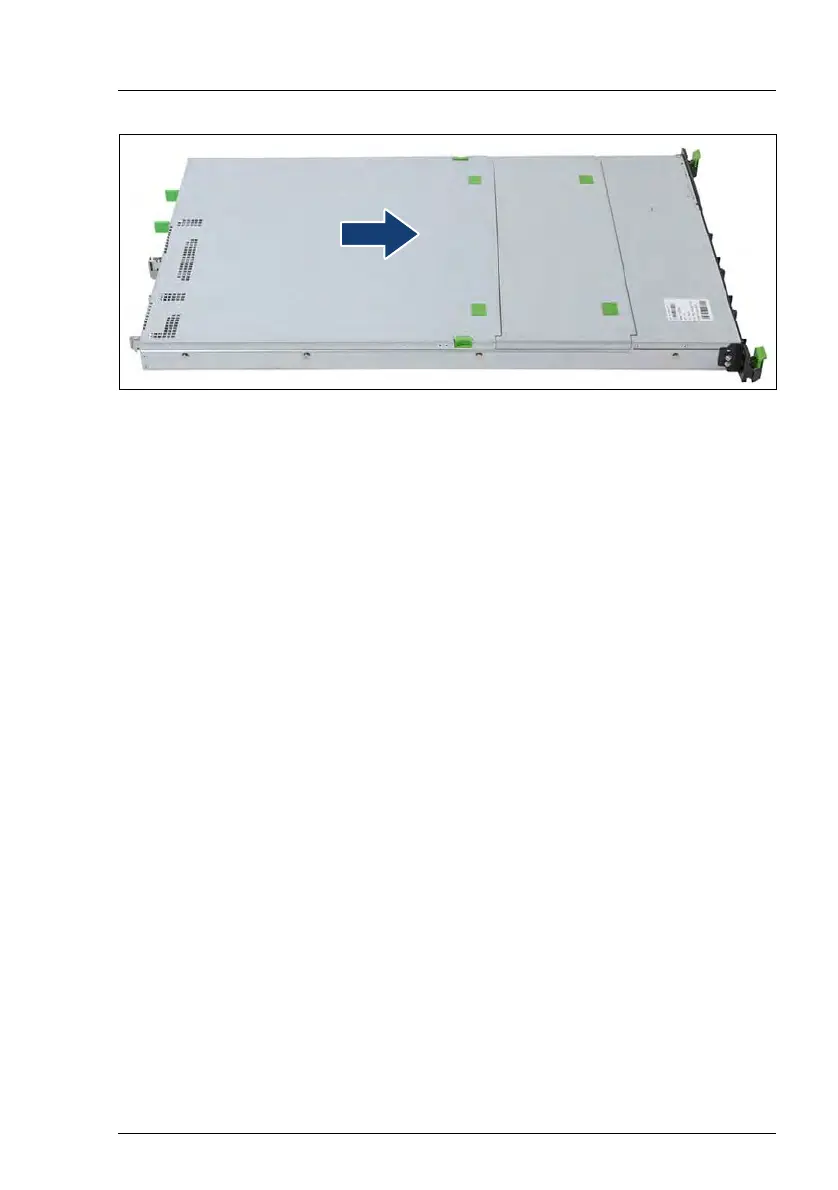

Figure 12: Attaching the housing cover (B)

Ê Push the housing cover as far as it will go in the direction of the arrow until

it clicks in.
