RX2530 M4 Upgrade and Maintenance Manual 197

Fans

I In case of 1 CPU configurations, the bays 5, 6, 7and 8 are occupied with

fan cage foams.

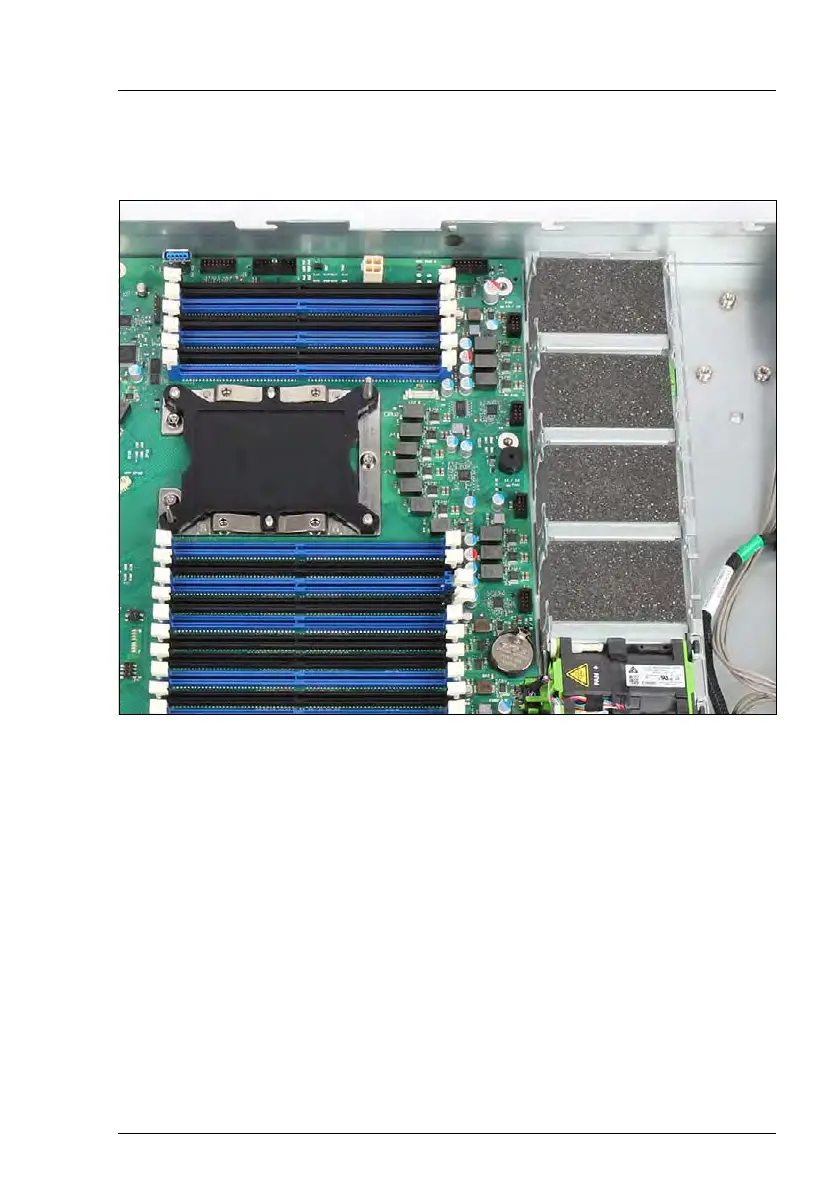

Figure 108: Fan bays occupied with fan cage foams
