196
Upgrade
and
Maintenance
Manual
RX2530 M4
Fans
Numbering of the f
an modules

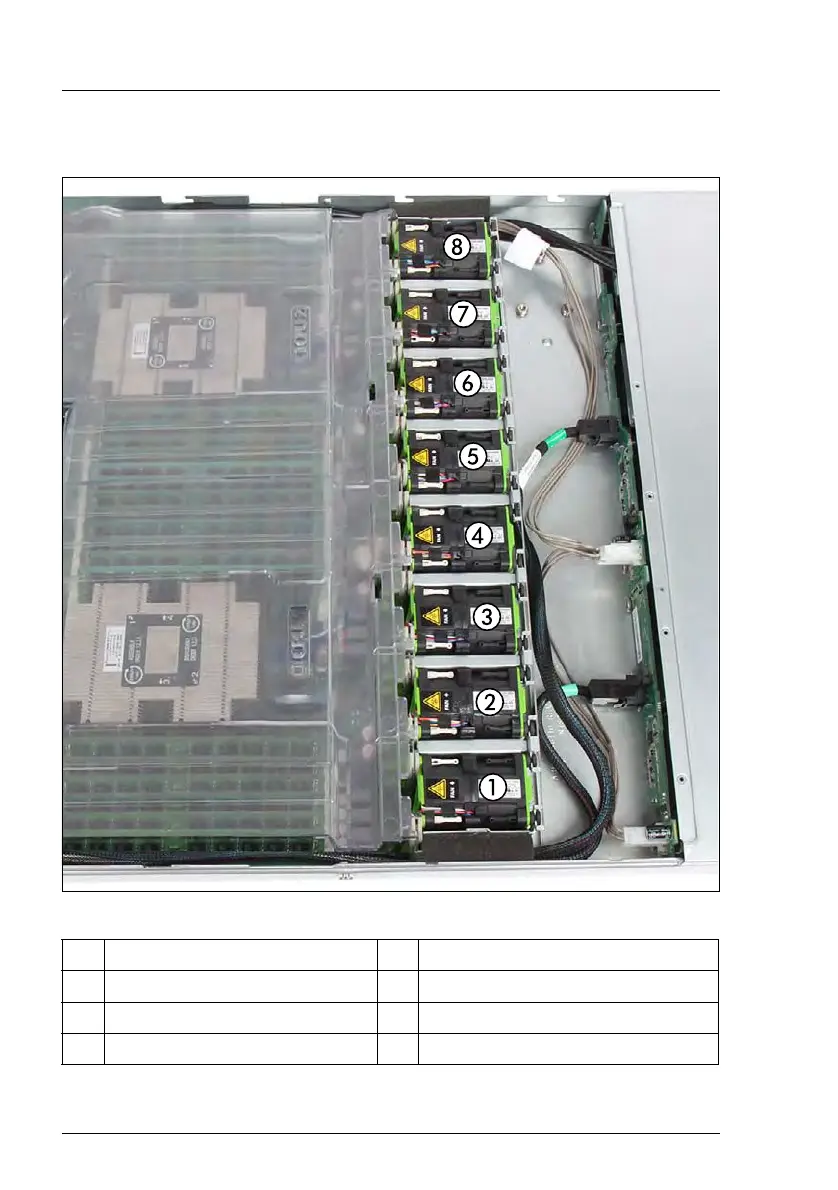

Figure 107: Numbering of the fan modules
1
CPU 1 fan 1/2
5
CPU 2 fan 9/10
2
CPU 1 fan 3/4
6
CPU 2 fan 1
1/12
3
CPU 1 fan 5/6
7
CPU 2 fan 13/14
4
CPU 1 fan 7/8
8
CPU 2 fan 15/16
195
197
