RX2530 M4 Upgrade and Maintenance Manual 261
Expansion cards and backup units

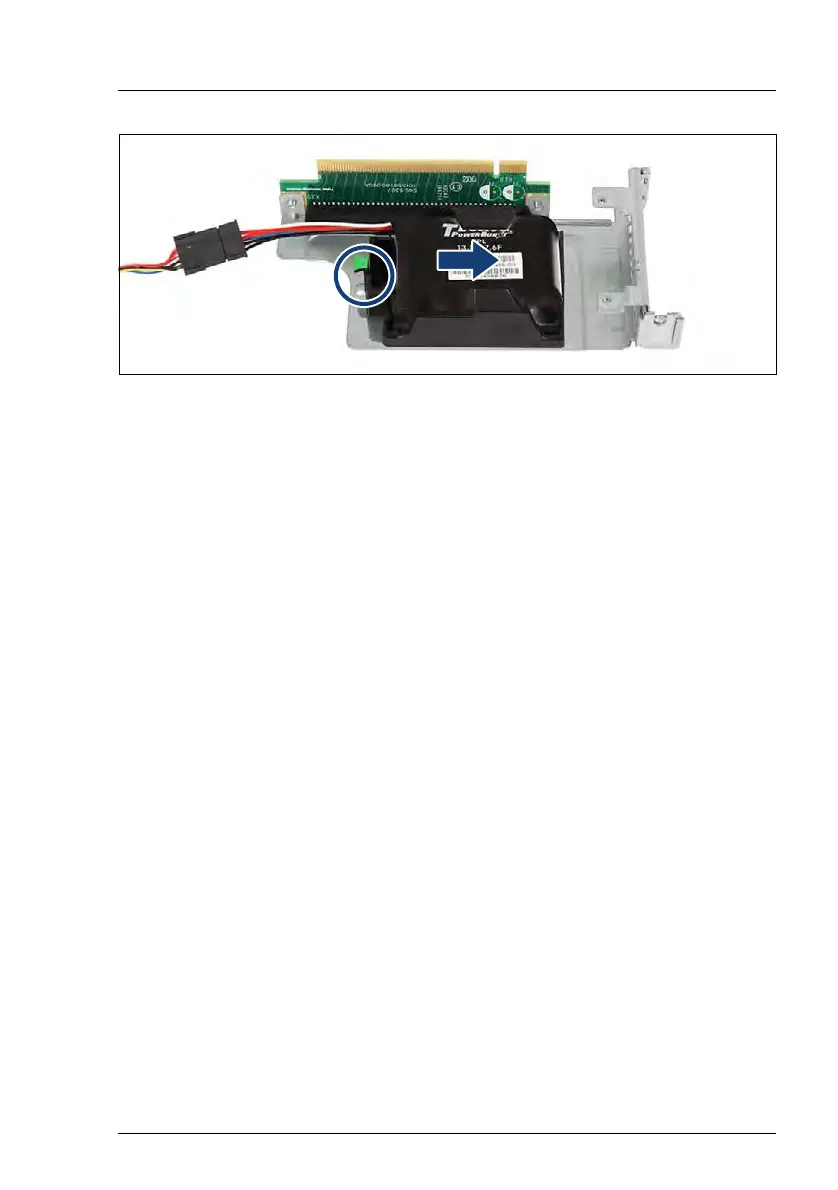

Figure 181: Installing the FBU with the holder
Ê Insert the holder into the riser module so that the three shoulder screw caps
on the riser module rest in the wide ends of the keyhole slots on the holder.
Ê Slide the holder in direction of the arrow.
The shoulder screw caps on the riser module will lock in the narrow ends of
the keyhole slots on the holder.
Ê Ensure that the locking handle on the holder properly snaps in place (see
circle).
Ê Install the RAID controller in riser module 1, see section "Example PRAID
EP5xxi" on page 224.
Ê Connect the FBU cable to the RAID controller.
