224 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
Example PRAID EP5xxi

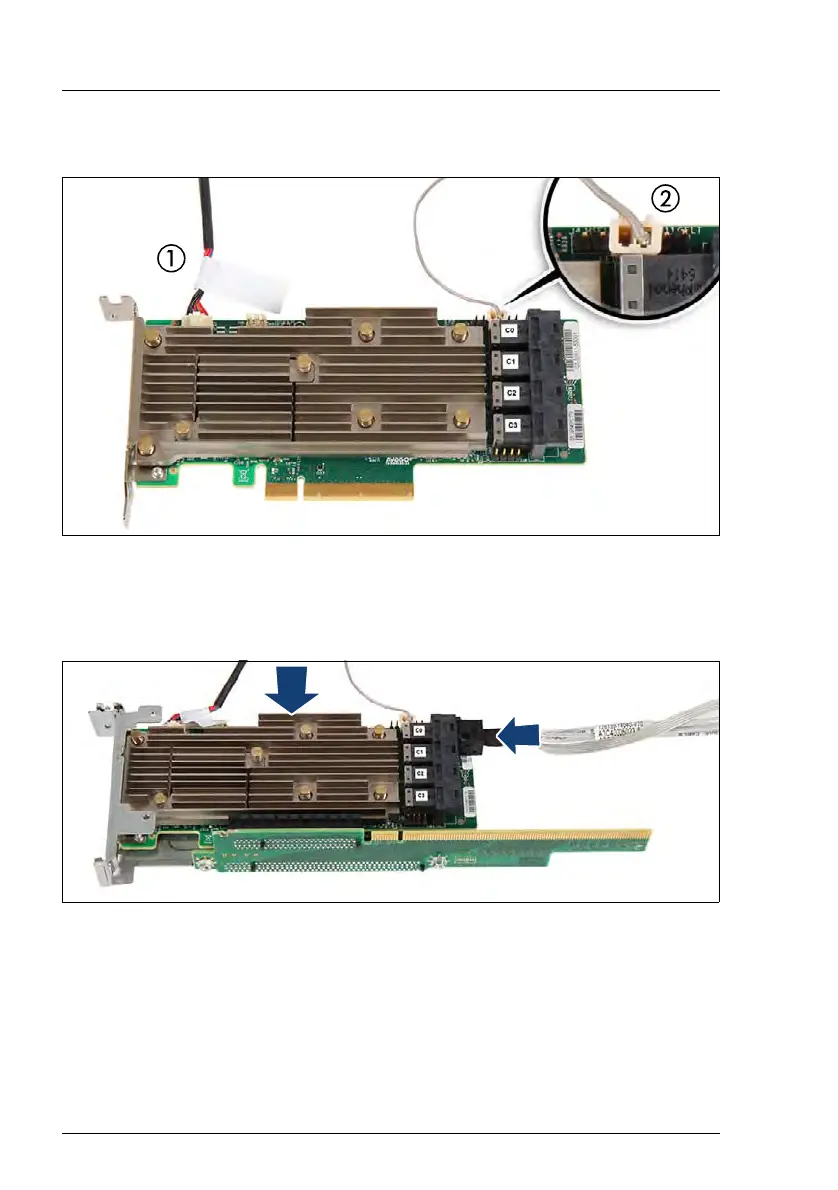

Figure 137: Connecting cables - PRAID EP5xxi
Ê If applicable, connect the corresponding FBU cable (1) to the PRAID EP5xxi.
Ê Connect the HDD LED cable (2) to the PRAID EP5xxi.
Figure 138: Connecting the SAS cable - PRAID EP5xxi in 3.5-inch HDD configuration
Ê Install the PRAID EP5xxi in riser module 1.
Ê Connect the corresponding SAS cable to the PRAID EP5xxi.
