RX2530 M4 Upgrade and Maintenance Manual 223
Expansion cards and backup units

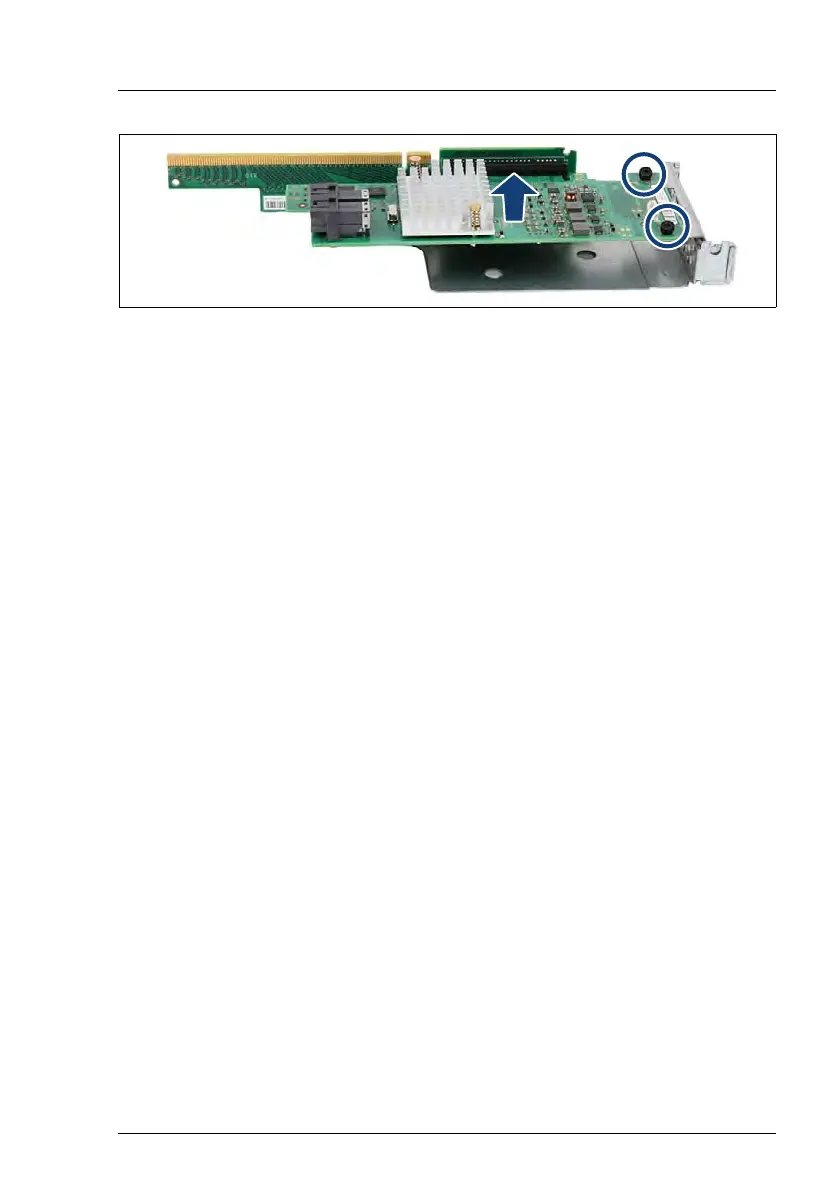

Figure 136: Installing an expansion card - example riser module 1, slot 1
Ê Slot 1:
Ê Carefully press the expansion card into the riser card slot, until it clicks
into place.
Ê If installing a RAID controller, remove the washers (see close-up in figure
131).
Ê Fasten the expansion card with two knurled screws (see circles).
The following figures show examples for installing expansion cards.
