RX2530 M4 Upgrade and Maintenance Manual 237
Expansion cards and backup units
V CAUTION!
Both M.2 slots must be equipped if the mirroring function will be used. In
this case both M.2 SSDs must be of the same type.
I There are more holes available to support different lengths of M.2 SSDs.

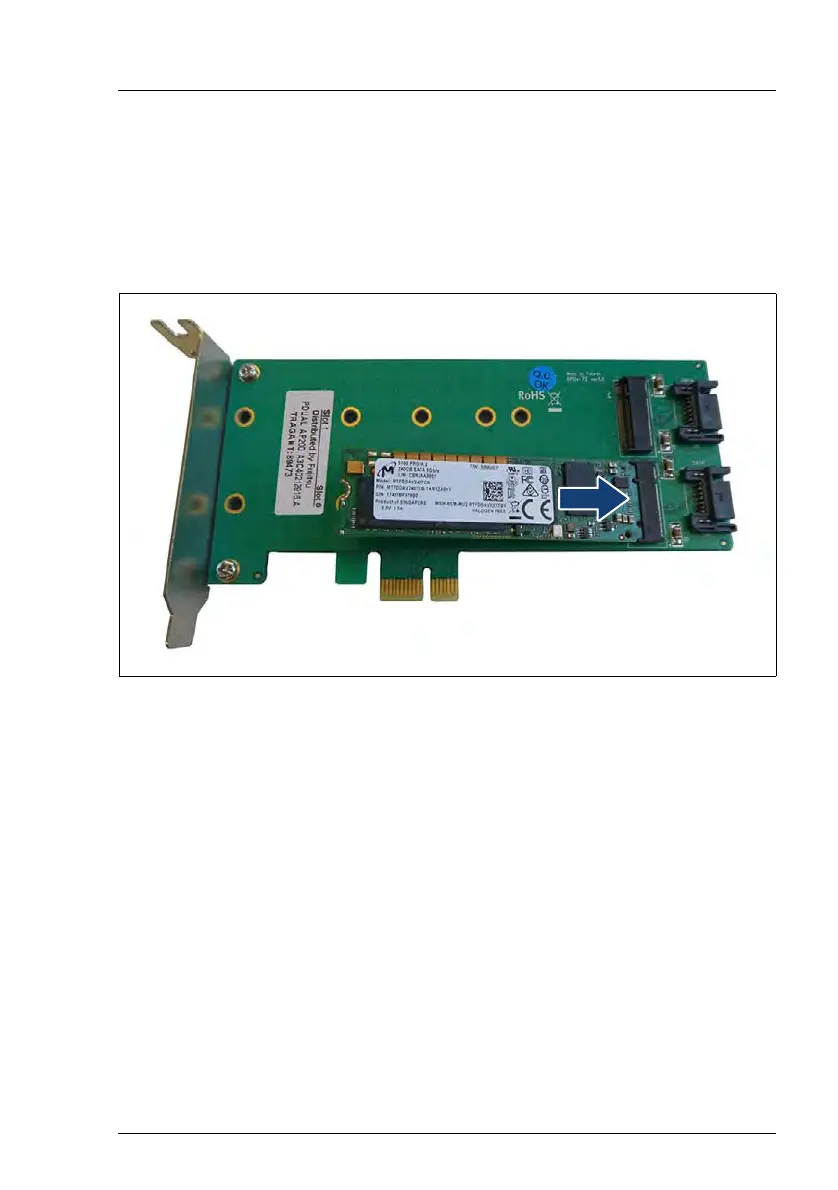

Figure 152: Installing the M.2 SSD
Ê With the label facing up, insert the M.2 SSD into the M.2 slot by holding it at
a slight angle.
