Ê Hold the CMA stopper, the crossbar and the CMA including cables in the one
hand.

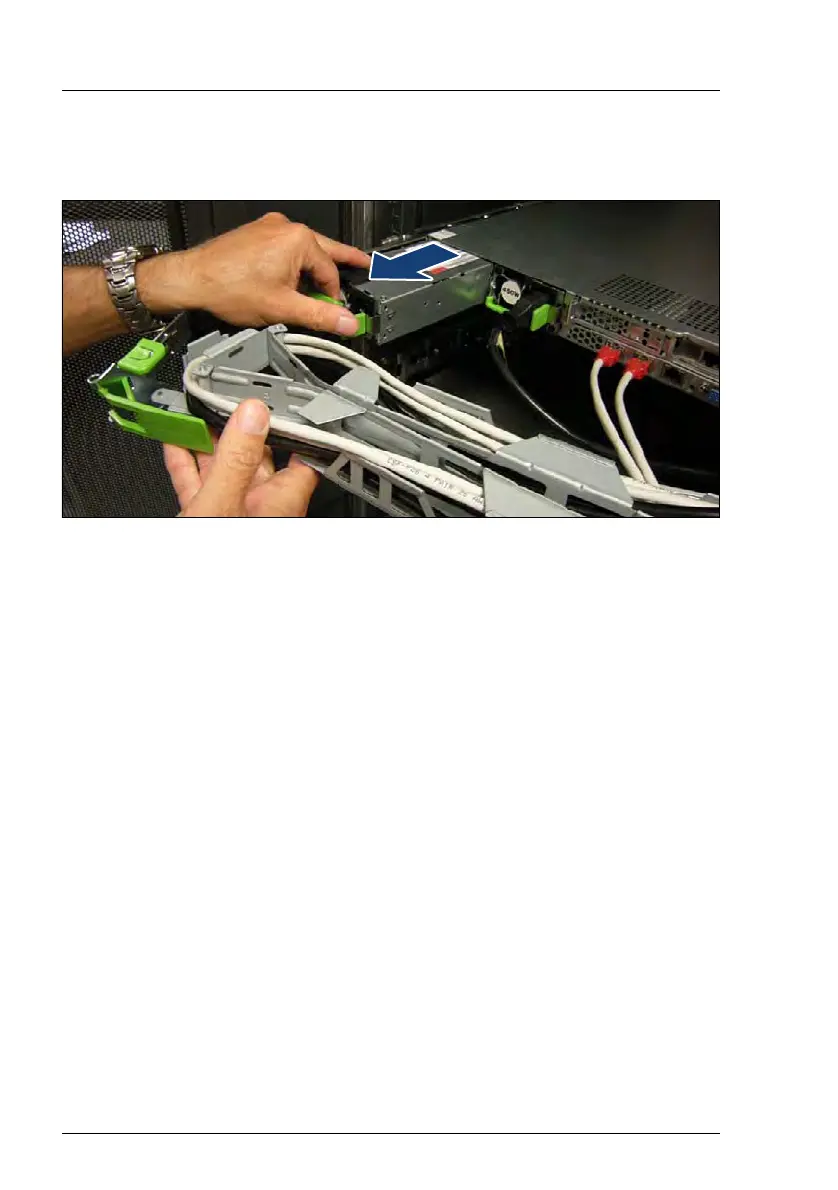

Figure 41: Removing the PSU
Ê Remove the PSU and install the dummy cover carefully.
I Note for PSU1: Remove the PSU1 carefully while lifting PSU1 and
bringing PSU1 to the right, in order to avoid interference
Ê Mount the complete assembly (CMA stopper, the crossbar and the CMA)
again into the rail.
