Hard disk drive (HDD) / solid state drive (SSD)
Configuration with up to two PCIe SSD modules
I In the configuration with up to 10 HDD/SSD modules, the first two HDD
bays can be equipped with PCIe SSD modules via onboard Oculink
connection (see figure 70 on page 153).

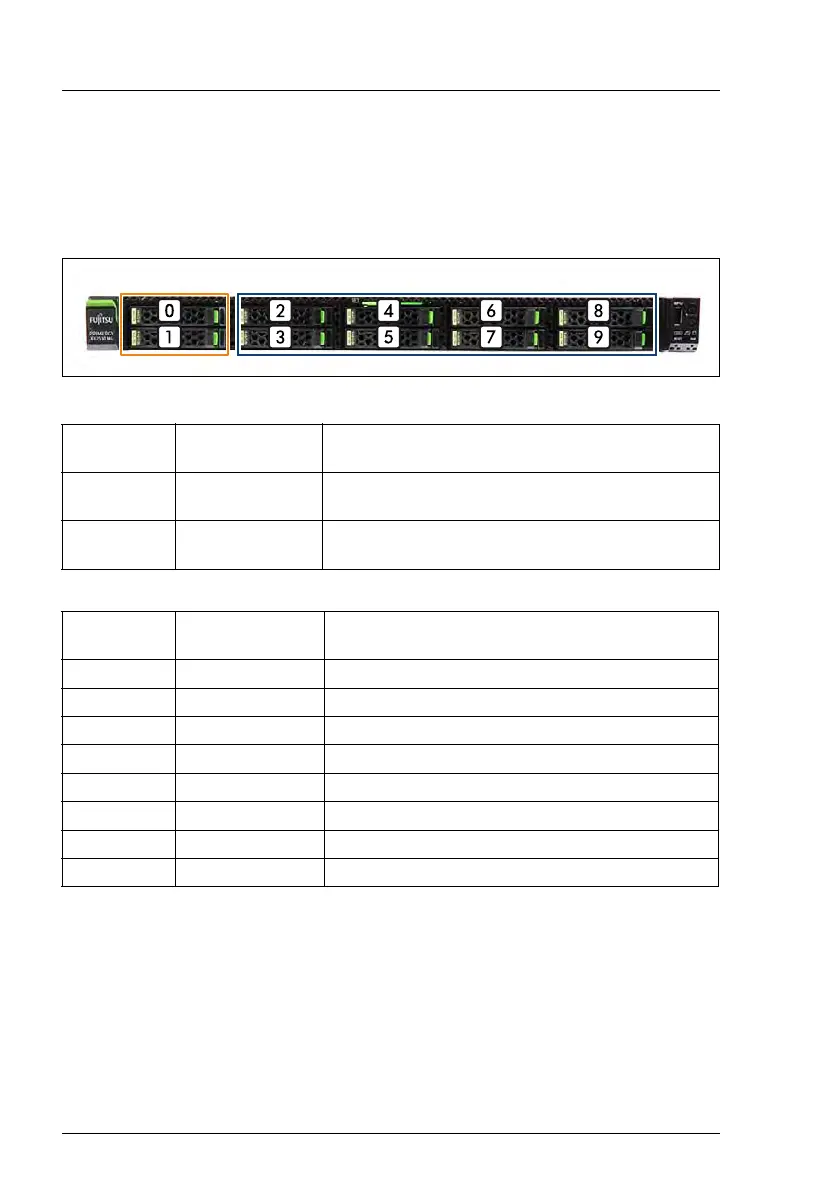

Figure 69: Configuration with up to two PCIe SSDs
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
[0] -
Intel PCIe Device Adapter (device serial number):
Vendor Product
[1] -
Intel PCIe Device Adapter (device serial number):
Vendor Product
Position
Logical drive
number
ServerView RAID Manager display name
[2] 2 Vendor Product (0)
[3] 3 Vendor Product (1)
[4] 4 Vendor Product (2)
[5] 5 Vendor Product (3)
[6] 6 Vendor Product (4)
[7] 7 Vendor Product (5)
[8] 8 Vendor Product (6)
[9] 9 Vendor Product (7)
PCIe SSD HDD/SSD
