RX2530 M4 Upgrade and Maintenance Manual 185

Hard disk drive (HDD) / solid state drive (SSD)

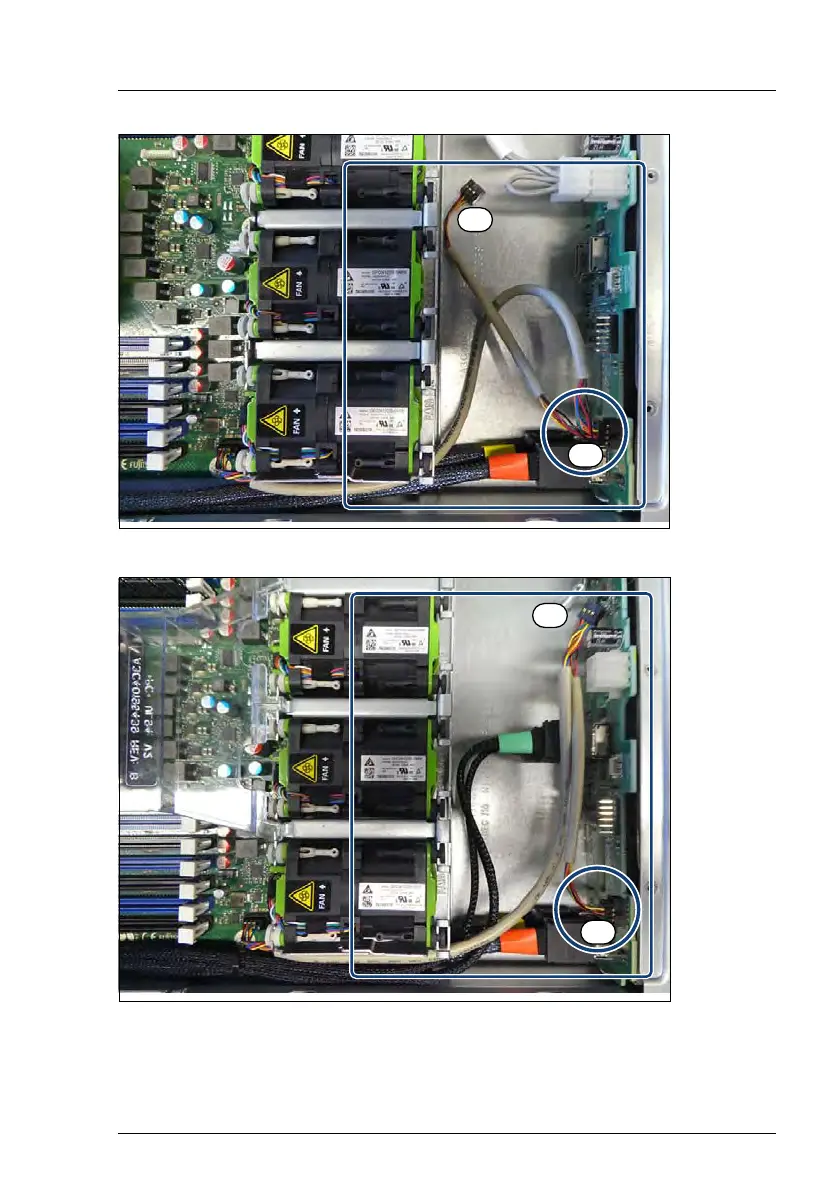

Figure 99: Connecting Oculink cables - example 2x Oculink, OOB cable P2 connected

Figure 100: Connecting Oculink cables - example 4x Oculink, OOB cable P3 connected

I For the cable plan, see chapter "Appendix B" on page 437.
