246 Upgrade and Maintenance Manual RX2530 M4

Expansion cards and backup units

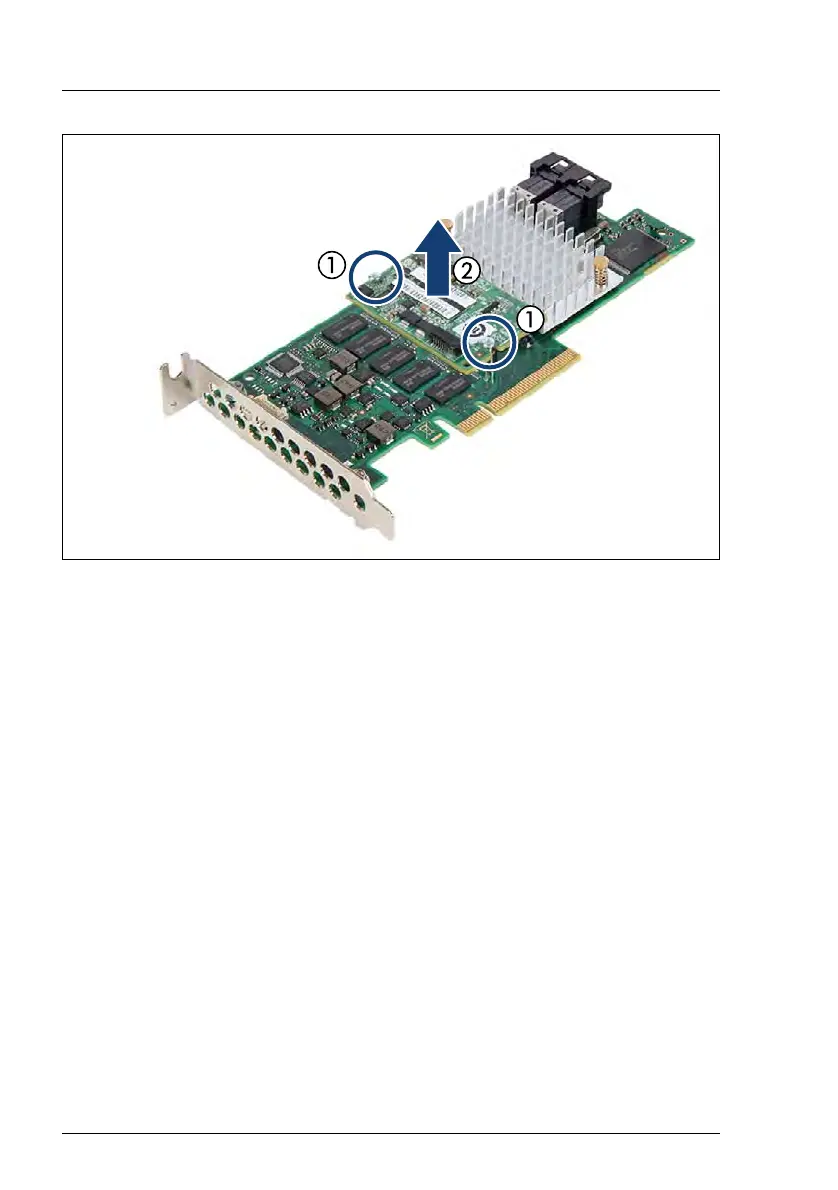

Figure 161: Removing the TFM

Ê Remove the two screws (1).

Ê Remove the TFM (2).

I Note for replacing the TFM:

The two spacer bolts can remain on the RAID controller.
