RX2530 M4 Upgrade and Maintenance Manual 115

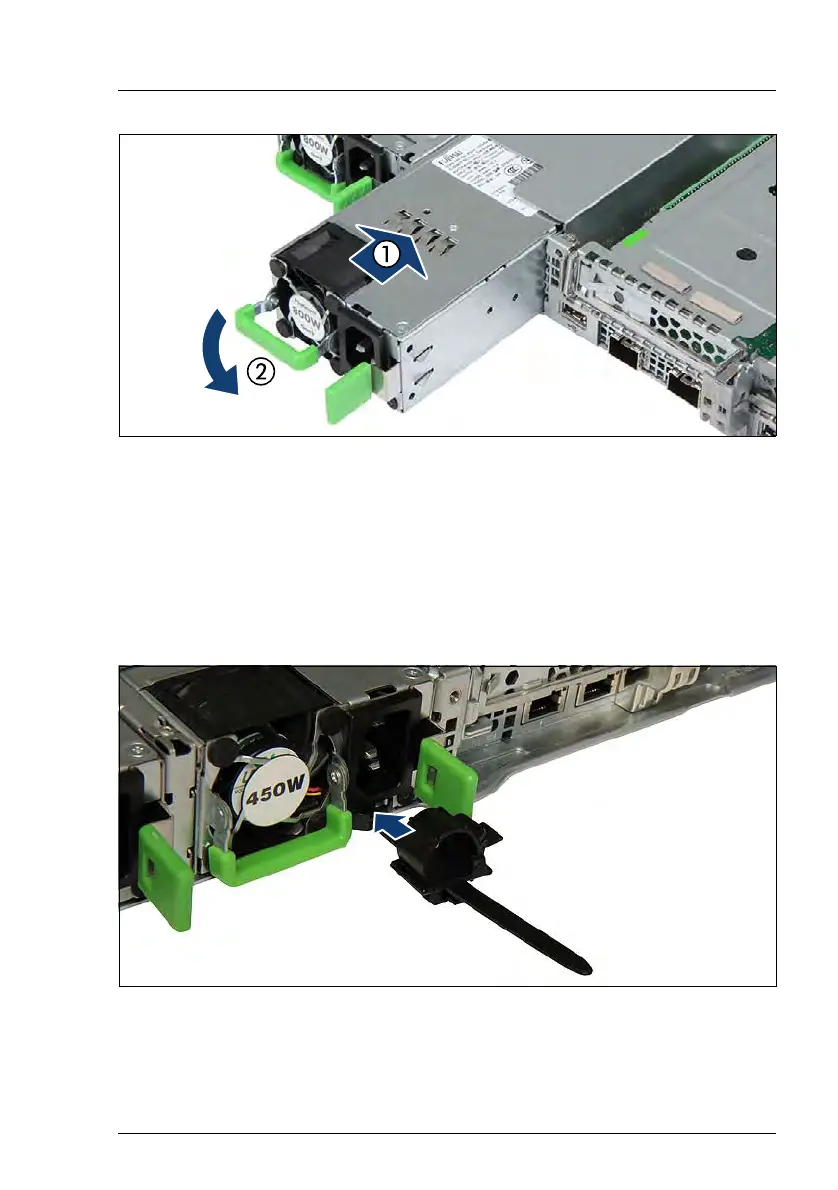

Figure 37: Installing the PSU
Ê Push the PSU into its bay (1) as far as it will go until the locking latch snaps
in place.
Ê Fold down the handle on the PSU (2).
I Make sure that the PSU engages correctly in the bay and is locked in
position. This is the only way to prevent the PSU from sliding out of its
bay and being damaged during transportation.
Figure 38: Installing the cable tie
Ê Only for AC PSU: push the cable tie into the corresponding hole until it clicks
in.
