136 Upgrade and Maintenance Manual RX2530 M4

Hard disk drive (HDD) / solid state drive (SSD)

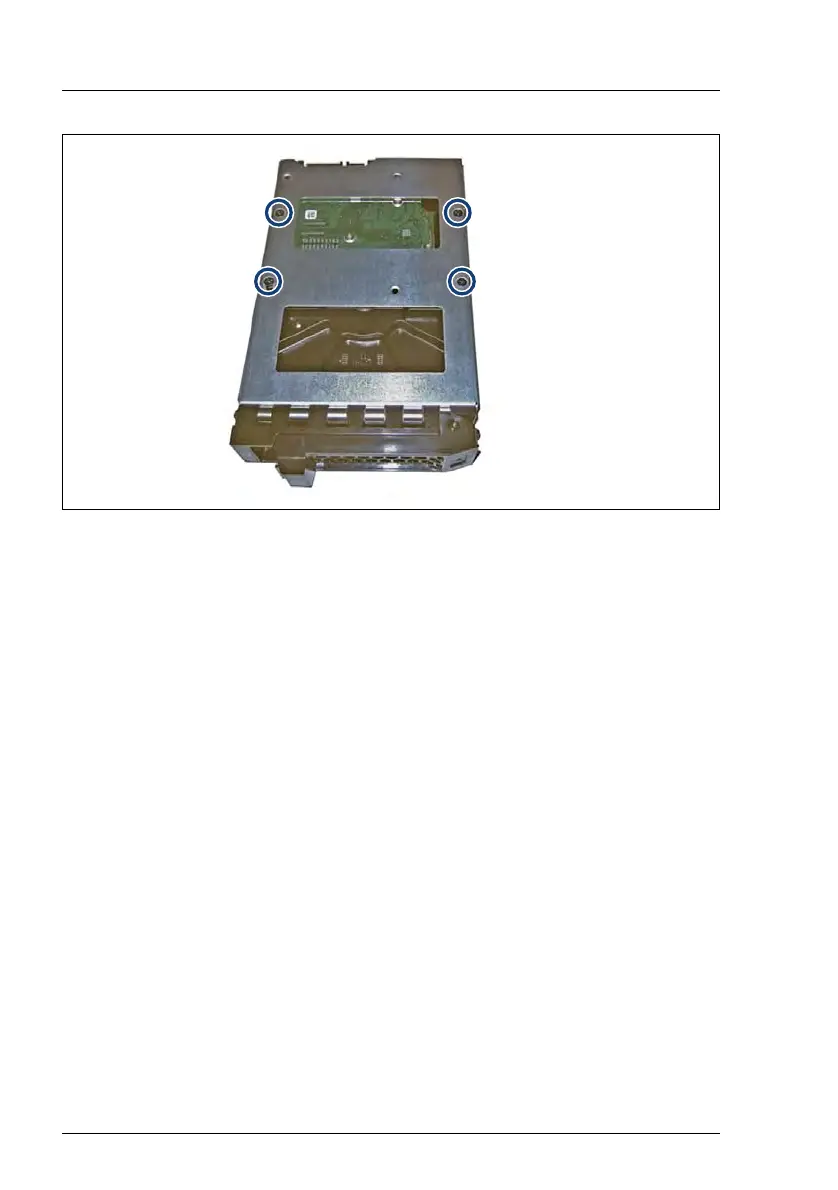

Figure 54: Installing the 3.5-inch HDD in the 3.5-inch installation frame (B)

Ê Fasten the 3.5-inch HDD with four screws.

Removing a 3.5-inch HDD from a 3.5-inch installation frame

Ê Please proceed in reversed order.
