RX2530 M4 Upgrade and Maintenance Manual 211
Expansion cards and backup units

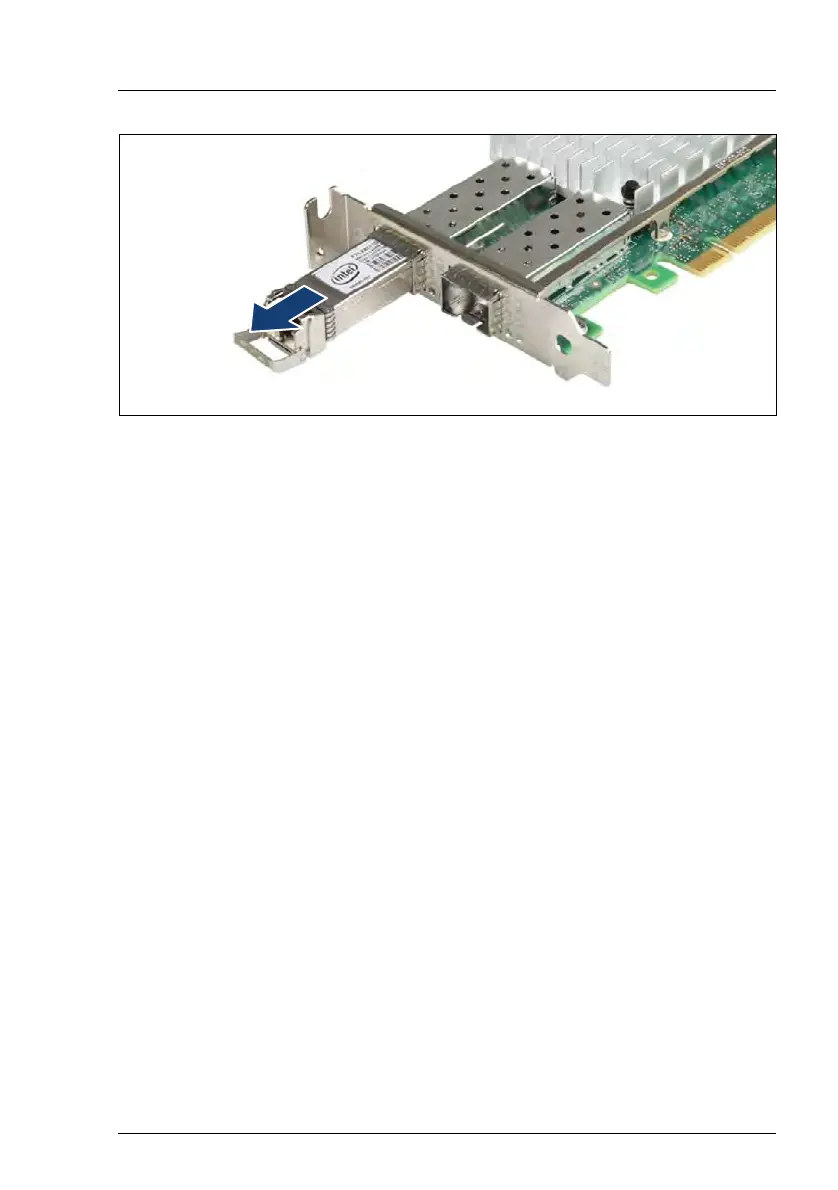

Figure 124: Removing the SFP+ transceiver module
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Attach the protective cap to the SFP+ transceiver module.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
