226 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units
Example PRAID EP540i with custom heat sink
I Only PRAID EP520i / PRAID EP540i with custom heat sink can be
installed in slot 1.

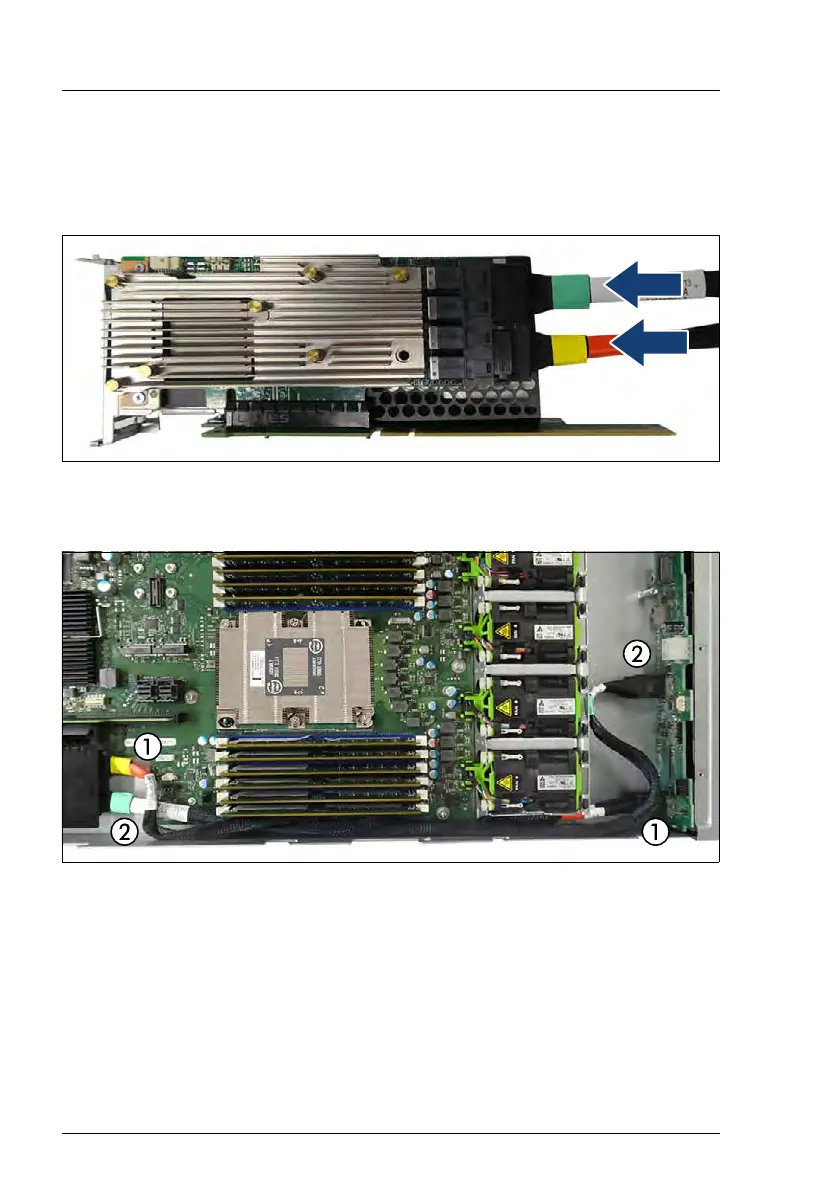

Figure 140: Connecting Oculink cables - PRAID EP540i
Ê Connect the color-coded Oculink cables to the PRAID EP540i.
Figure 141: Routing Oculink cables - PRAID EP540i
Ê Install the PRAID EP540i in slot 1.
Ê Connect the color-coded Oculink cables to the corresponding HDD
backplane.
