Fujitsu PRIMERGY RX2530 M4

RX2530 M4 Upgrade and Maintenance Manual 295
Processor (CPU)

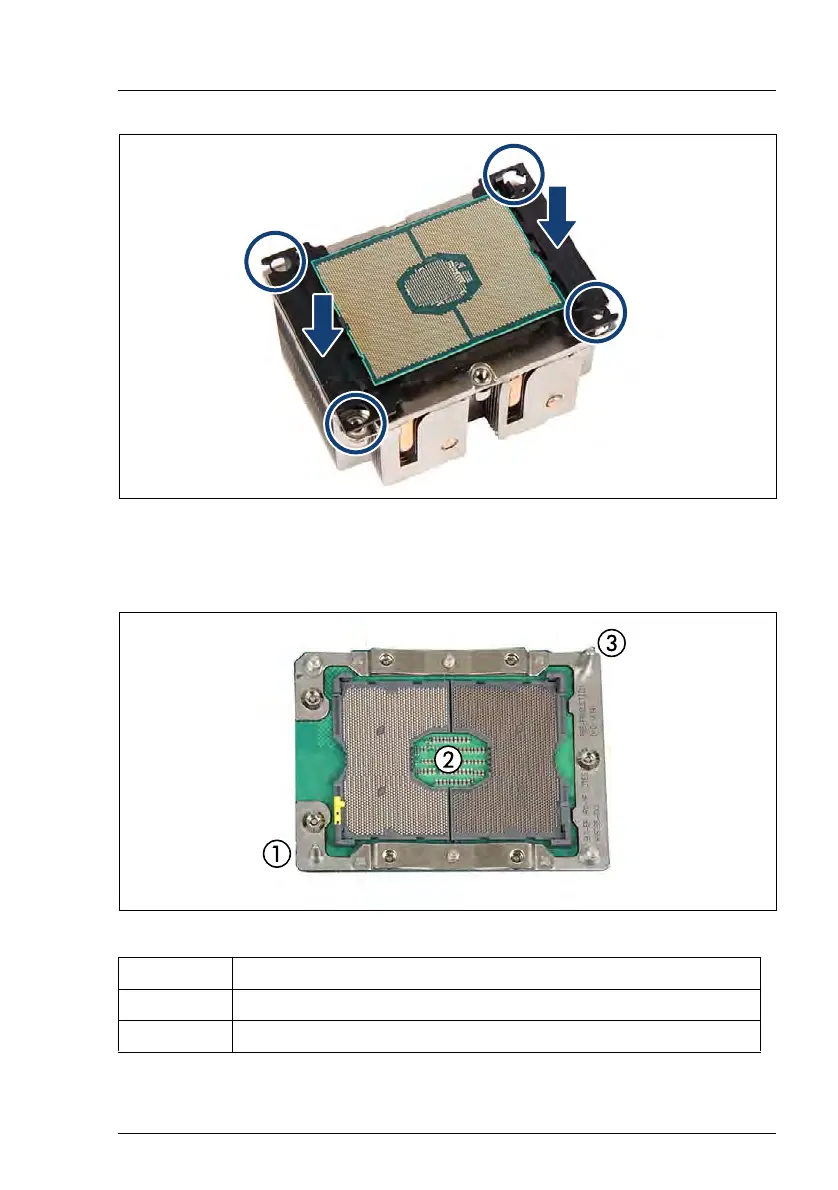

Figure 202: Installing the CPU frame on the heat sink (B)
Ê Press down the CPU frame (see arrows).
The frame must click into place (see circles).
Figure 203: Position pins
1 Thin pin
2 Empty CPU socket
3Thick pin
