Liquid cooling (LC)

When replacing the LC device

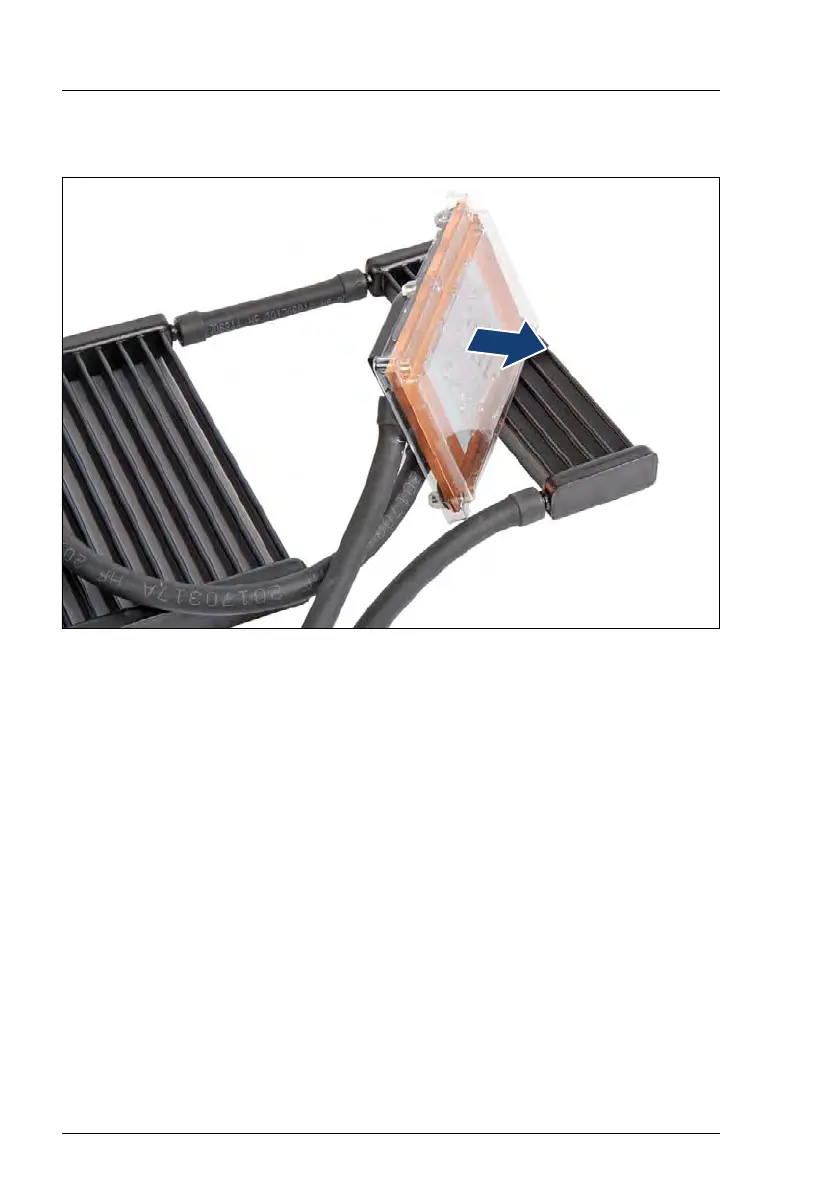

Figure 226: Removing the protective cover

Ê When replacing the LC device, remove the protective cover from the heat

sink.
