RX2530 M4 Upgrade and Maintenance Manual 323

Liquid cooling (LC)

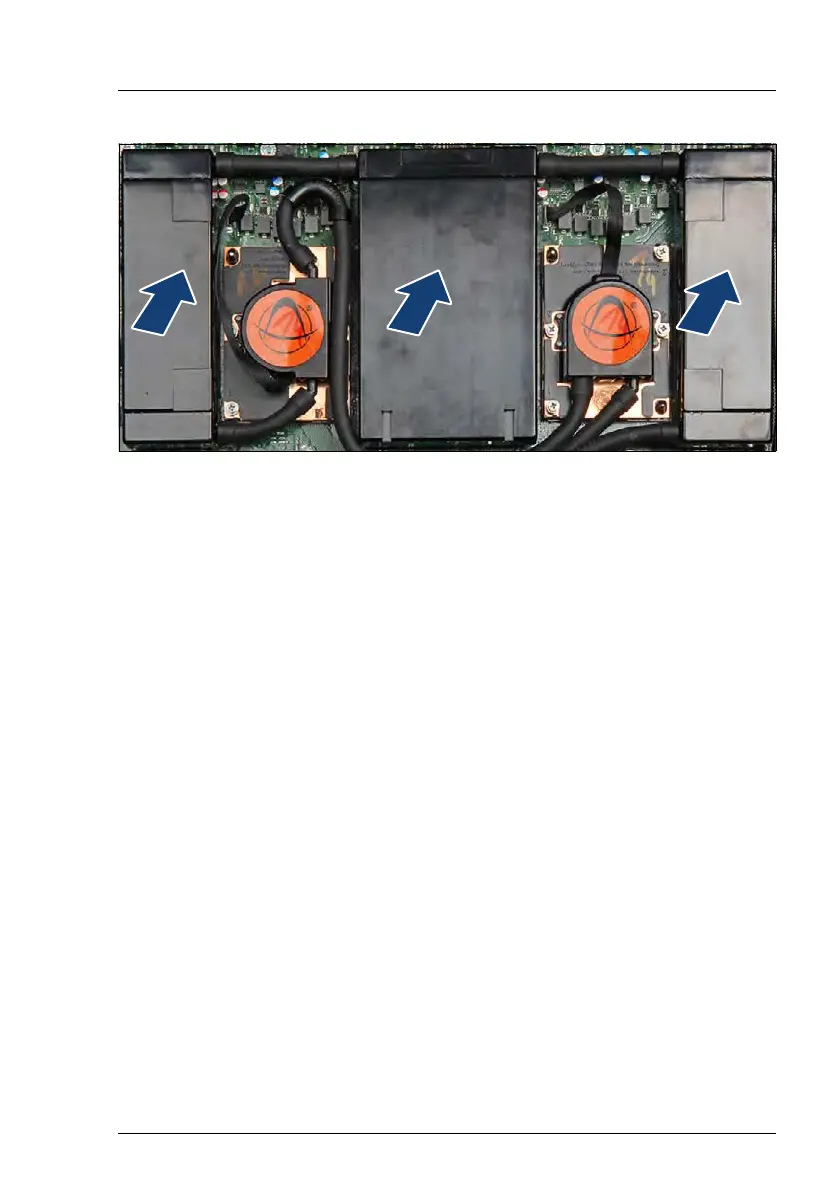

Figure 232: Installing the memory covers

Ê Position the memory covers over the memory modules and press them

carefully down.
