RX2530 M4 Upgrade and Maintenance Manual 327

Liquid cooling (LC)

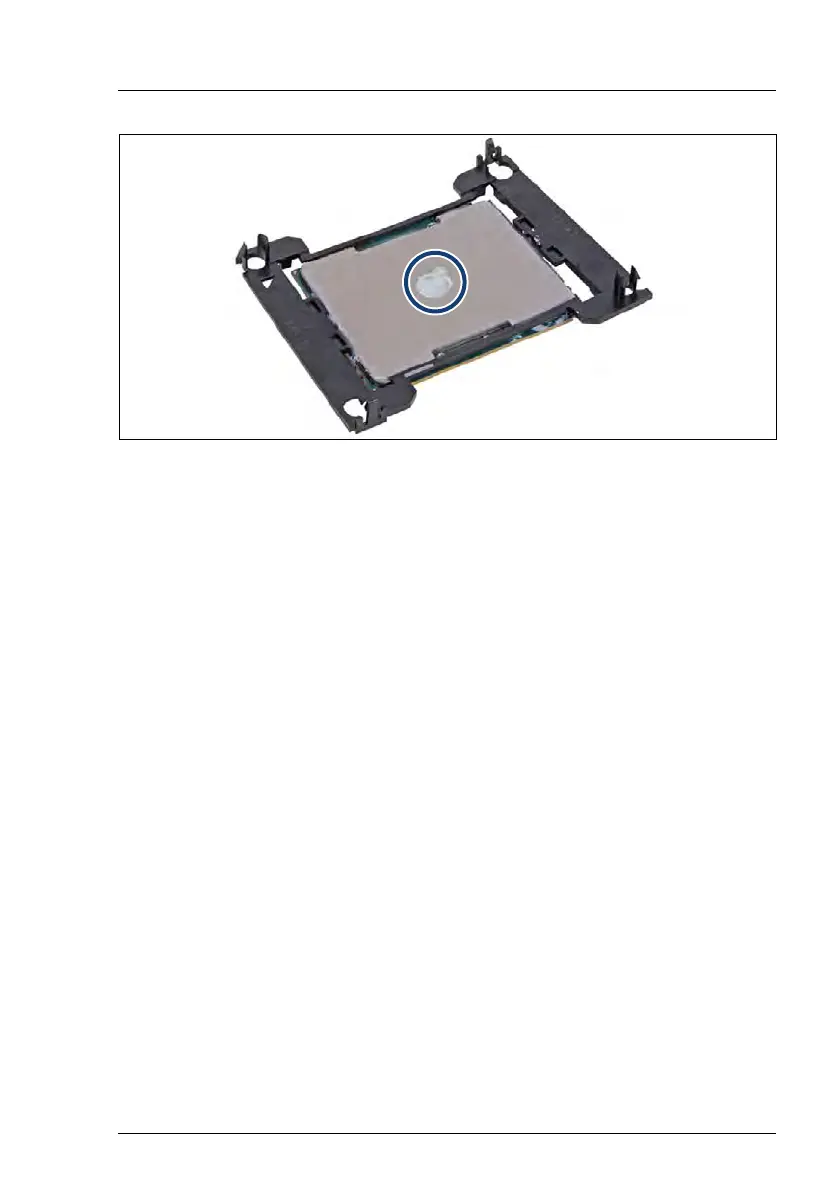

Figure 235: Applying thermal paste

Ê Apply a small streak of thermal paste (see description above) to the center

of the CPU surface as shown.

V CAUTION!

Do not mix different types of thermal paste.
