RX2530 M4 Upgrade and Maintenance Manual 383
System board and components
16.5 M.2 SSD
The system board offers two M.2 slots (Key M) with support for 42 mm, 60 mm,
80 mm and 110 mm long M.2 SSDs. With the M.2 SSD an internal SSD is
offered. This SSD can be configured as a boot device or data storage device.
16.5.1 Installing an M.2 SSD
16.5.1.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
16.5.1.2 Installing the M.2 SSD

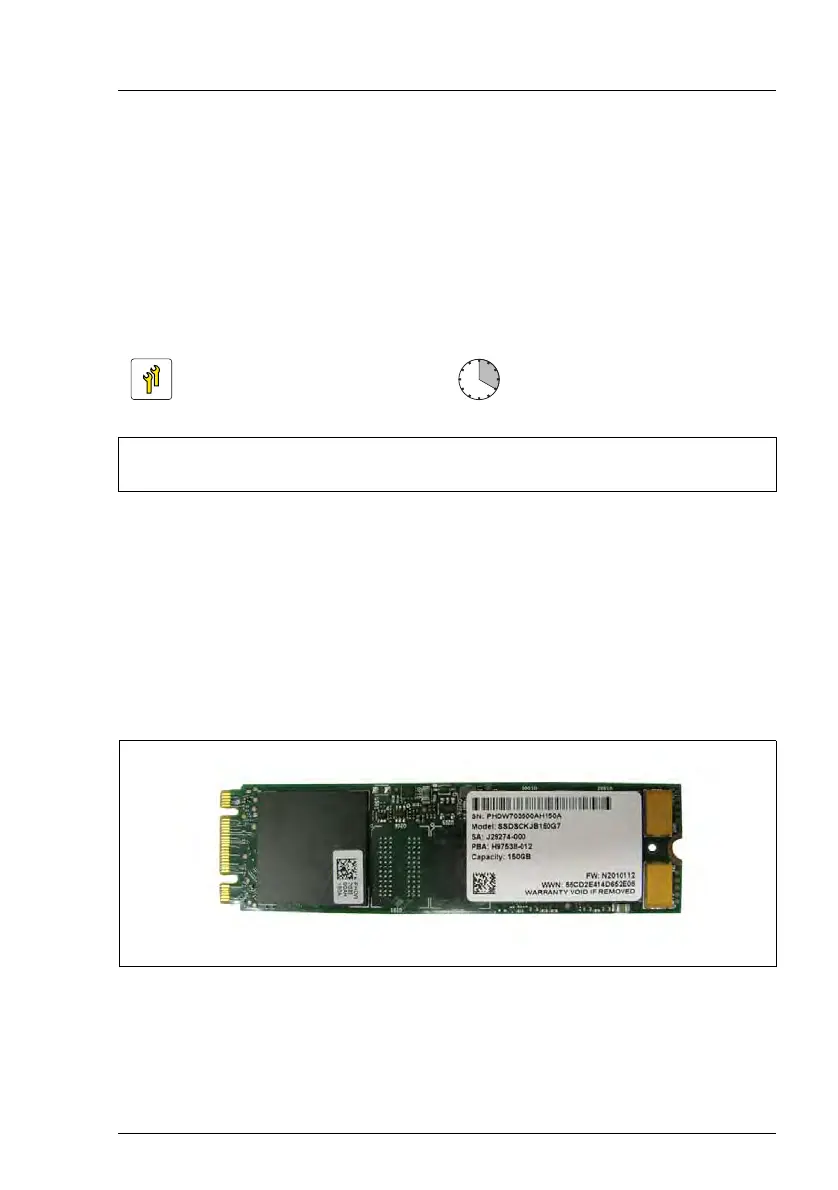

Figure 287: Example M.2 SSD
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 15 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
– Hexagon screw driver
