17.2.3.4 Indicator on FJBU

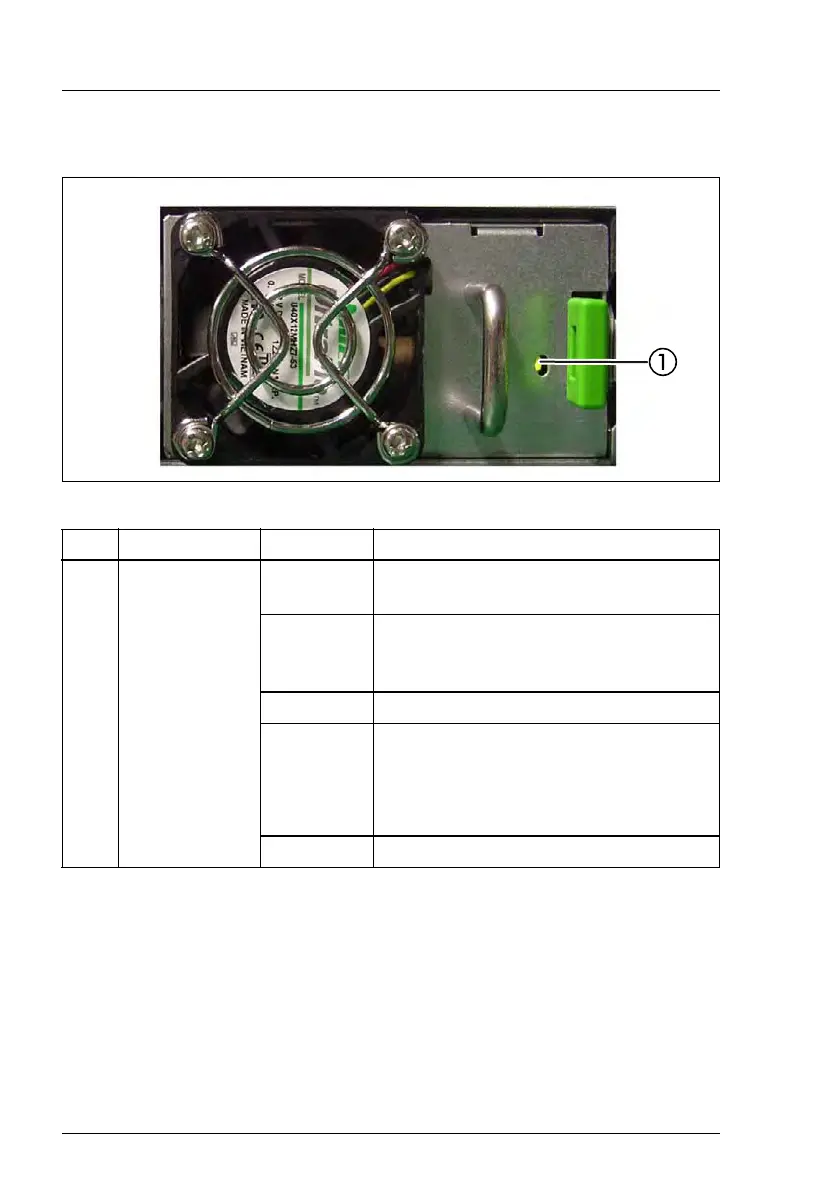

Figure 324: Indicator on FJBU
Pos. Indicator Status Description
1
FJBU status
indicator
flashing
green
The battery unit is charging.
flashing
green
slowly
The battery unit is discharging.
green on The battery unit is fully charged.
flashing
orange
A battery unit failure has been detected.
Possible causes:
– Capacity failure
– Overheating
orange on A general battery failure has occurred.
