terrAin AnnunciAtionS
Terrain Awareness and Warning System (TAWS) or Terrain SVT annunciations appear on the PFD to the
upper left of the Altimeter. Refer to the Hazard Avoidance Section and the Appendix for information on
optional TAWS or Terrain SVT alerts and annunciations.
Inset Map
Enabled,
Displaying
Traffic When
TA Detected

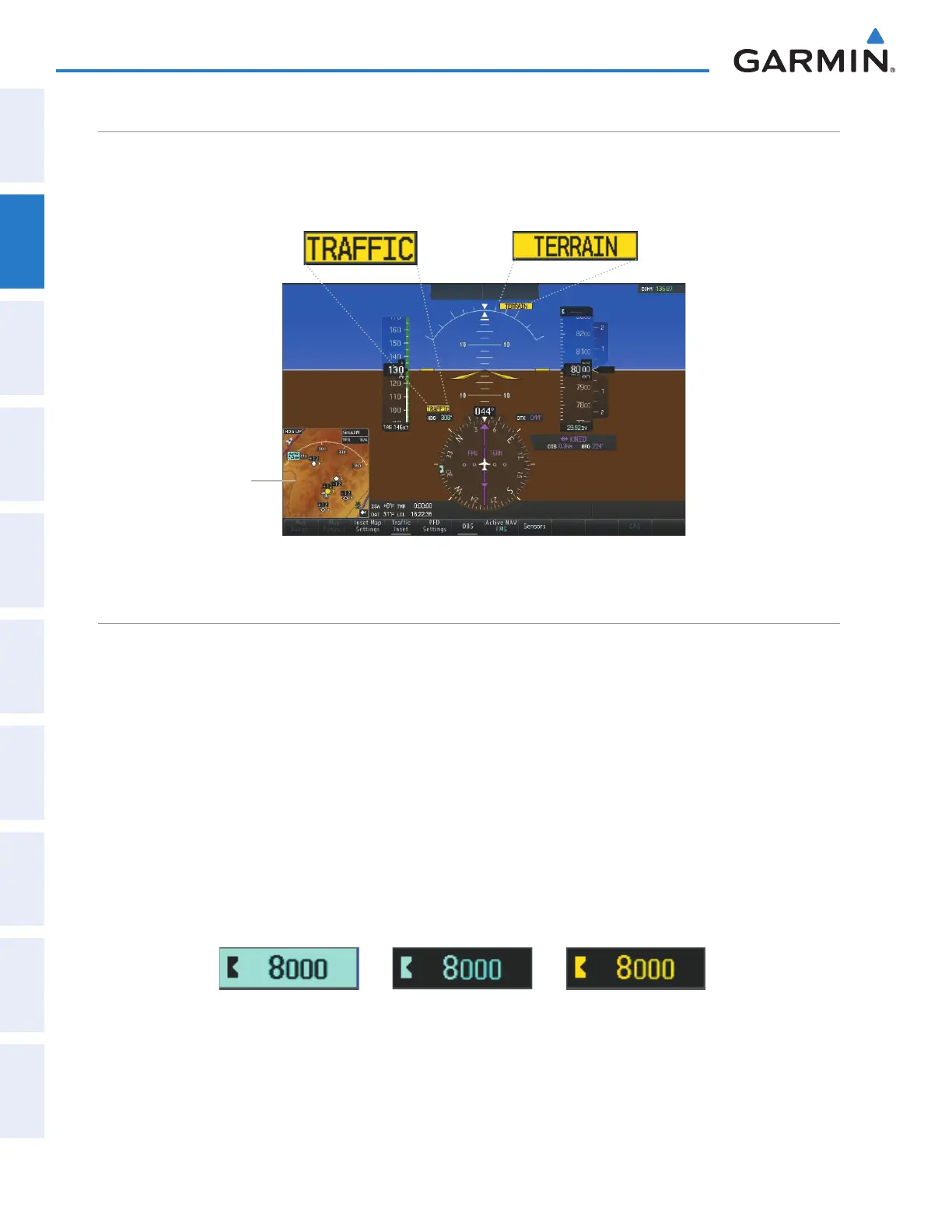

Figure 2-49 Traffic and Example TAWS-B Annunciations
Altitude Alerting
Altitude Alerting provides the pilot with visual and aural alerts when approaching the Selected Altitude.
Whenever the Selected Altitude is changed, the Altitude Alerter is reset. The Altitude Alerter is independent
of the GFC 700 AFCS, but visual annunciations and alerting tones are provided only when the GFC 700 is
installed. The following occur when approaching the Selected Altitude:
• Upon passing through 1000 feet of the Selected Altitude, the Selected Altitude changes to black text on a light
blue background and flashes for 5 seconds.
• When the aircraft passes within 200 ft of the Selected Altitude, an aural tone is heard, and the Selected
Altitude changes to light blue text on a black background and flashes for 5 seconds.
• After reaching the Selected Altitude, if the pilot flies outside the deviation band (±200 feet of the Selected
Altitude) an aural tone is heard. The Selected Altitude changes to yellow text on a black background and
flashes for 5 seconds.
Figure 2-50 Altitude Alerting Visual Annunciations
Within 1000 ft Within 200 ft Deviation of ±200 ft
