Appendix A
TERRAIN ALERTS AND ANNUNCIATIONS

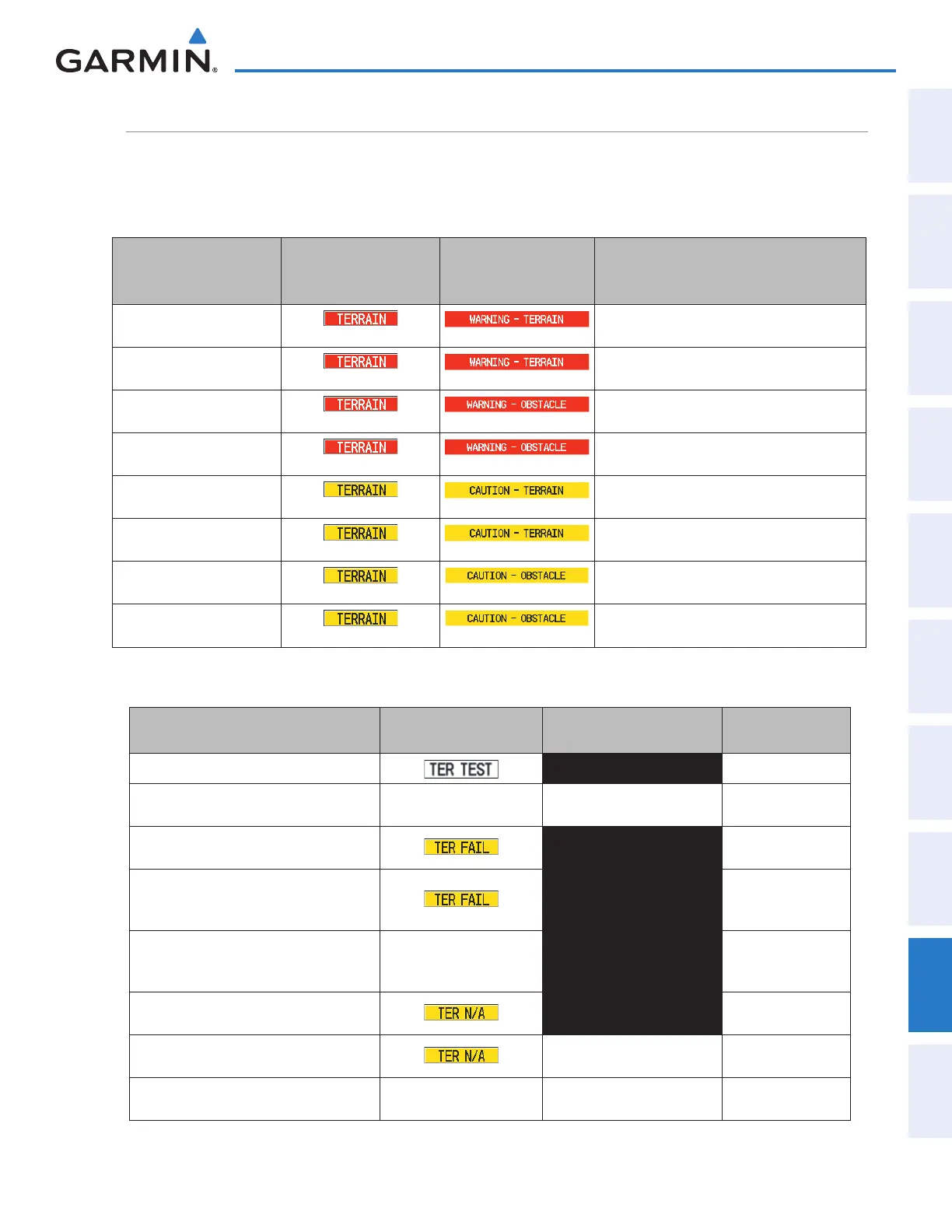

The system includes either Terrain SVS or Terrain Awareness and Warning System (TAWS) alerting, depending
on which system is installed.
TERRAIN SVT TERRAIN ALERTS
Alert Type
PFD/Terrain SVT
Pane Annunciation
Touchscreen
Controller
Pop-Up Alert
Voice Alert
Reduced Required Terrain
Clearance Warning (RTC)
“Warning; Terrain, Terrain”
Imminent Terrain Impact Warning
(ITI)
“Warning; Terrain, Terrain”
Reduced Required Obstacle
Clearance Warning (ROC)
“Warning; Obstacle, Obstacle”
Imminent Obstacle Impact
Warning (IOI)
“Warning; Obstacle, Obstacle”
Reduced Required Terrain
Clearance Caution (RTC)
“Caution; Terrain, Terrain”
Imminent Terrain Impact Caution
(ITI)
“Caution; Terrain, Terrain”
Reduced Required Obstacle
Clearance Caution (ROC)
“Caution; Obstacle, Obstacle”
Imminent Obstacle Impact
Caution (IOI)
“Caution; Obstacle, Obstacle”
TERRAIN SVT SYSTEM STATUS ANNUNCIATIONS
Alert Type
PFD/Terrain SVT
Pane Annunciation
Terrain SVT Pane
Annunciation
Voice Alert
System Test in Progress TERRAIN TEST None
System Test Pass None None
“Terrain System Test
OK”
Terrain System Test Fail
TERRAIN FAIL
“Terrain System
Failure”
Terrain or Obstacle database unavailable or
invalid, invalid software configuration, system
audio fault
TERRAIN FAIL
“Terrain System
Failure”
MFD Terrain or Obstacle database unavailable
or invalid. System operating with PFD Terrain
or Obstacle databases
None TERRAIN DATABASE FAILURE None
No GPS position NO GPS POSITION
“Terrain System Not
Available”
Excessively degraded GPS signal or out of
database coverage area
None
“Terrain System Not
Available”
Sufficient GPS signal received after loss or
database coverage area entered
None None
“Terrain System
Available”
