Selected altitude intercept arc
The map can display the location along the current track where the aircraft will intercept the selected altitude.
The location will be shown as a light blue arc when the aircraft is actually climbing or descending.

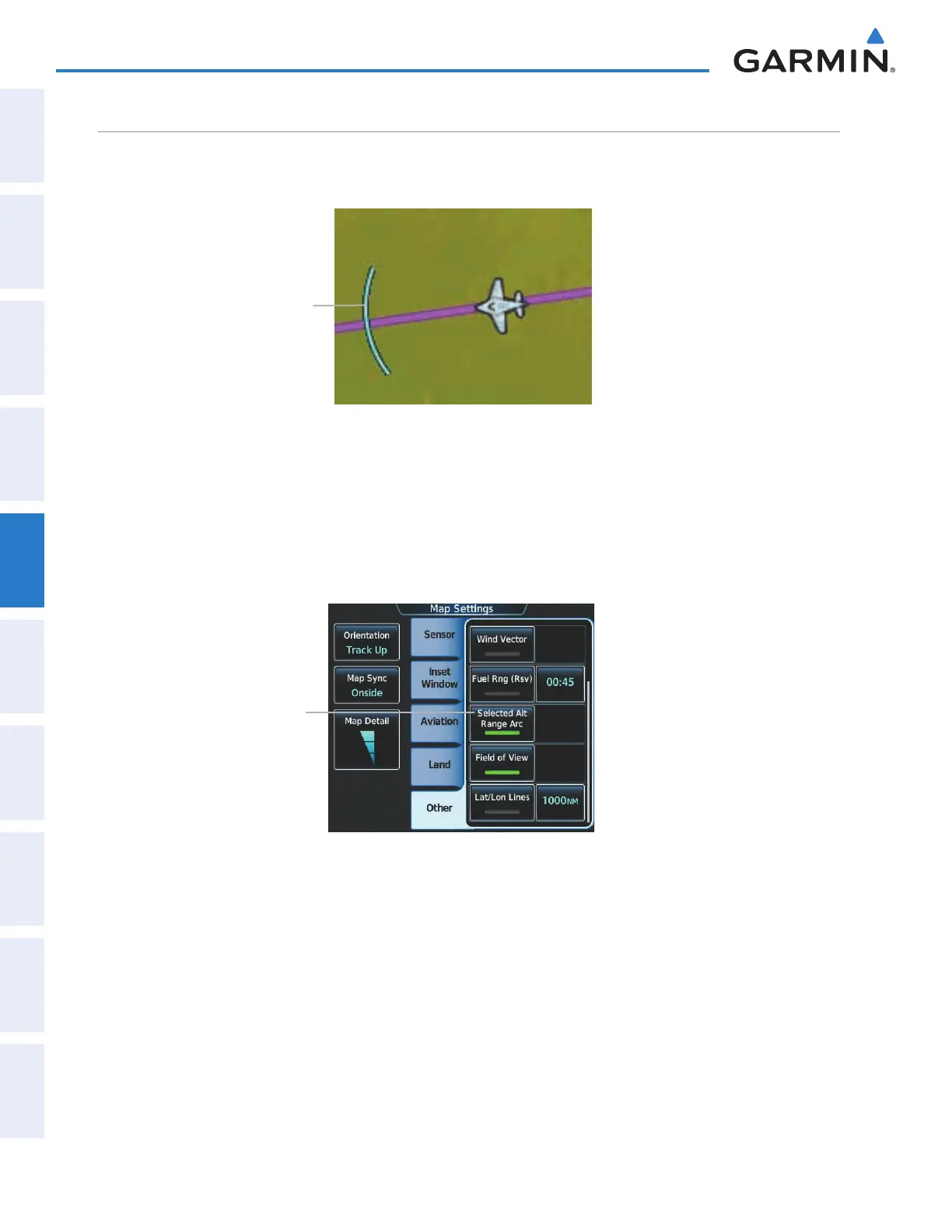

Figure 5-31 Navigation Map - Selected Altitude Intercept Arc
Selected
Altitude
Intercept Arc
Displaying/removing the selected altitude intercept arc:
1) From Home, touch Map > Map Settings.
2) Touch the Other Tab, if necessary.
3) Touch the Selected Alt Range Arc Button to display/remove the selected altitude intercept arc.
Selected Alt Range Arc
Button
Figure 5-32 Map Settings Screen -Selected Altitude Intercept Arc Setup
