190-01263-01 Rev. A
Garmin G2000 Pilot’s Guide for the Cessna T240
457
AutomAtic Flight control SyStem
SyStem
oVerVieW
Flight
inStrumentS
eiS
AuDio PAnel
& cnS
Flight
mAnAgement
hAZArD
AVoiDAnce
AFcS
ADDitionAl
FeAtureS
APPenDiceS inDeX
go ArounD moDe (gA)
Pushing the
GA Switch
engages the flight director in a wings-level, pitch-up attitude, allowing the execution
of a missed approach or a go around. This mode is a coupled pitch and roll mode and is annunciated as
‘GA’ in both the active pitch and roll mode fields. Go Around Mode arms Selected Altitude Capture Mode
automatically. Attempts to modify the aircraft attitude (i.e., with the
CWS
Button or the
UP/DN
Wheel) result
in reversion to Pitch and Roll Hold modes.

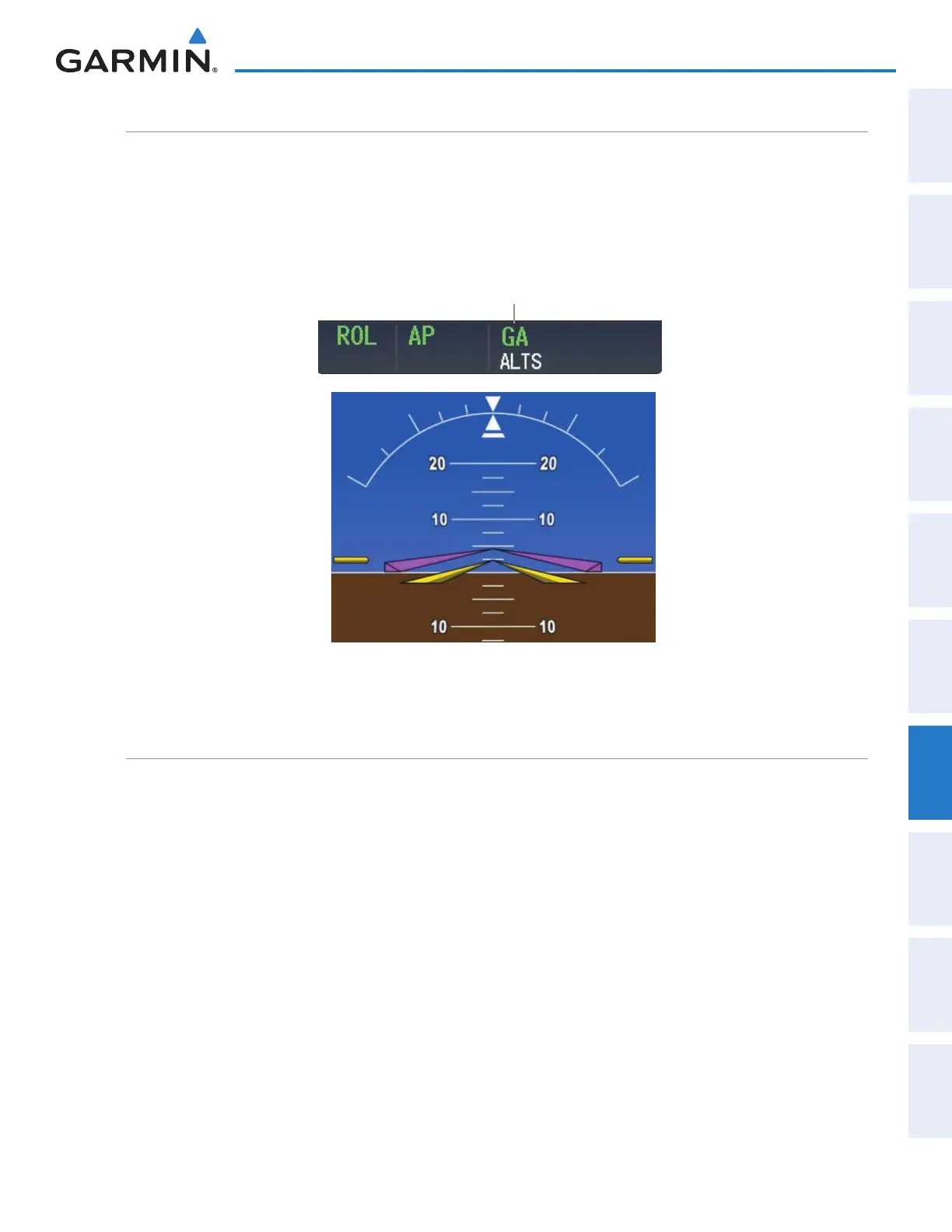

Figure 7-19 Go Around Modes
Command Bars Indicate Climb
Go Around
Mode Active
level moDe (lvl)
Level (LVL) mode becomes active only as a function of Electronic Stability and Protection (ESP). Refer to the
Additional Features section for a detailed discussion of the optional ESP feature.
When the normal flight envelope thresholds have been exceeded for more than 50% of the last 20 seconds,
Level mode is activated. The autopilot will engage and provide input to bring the aircraft back into straight
and level flight based on zero degrees roll angle and zero feet per minute vertical speed. A voice “ENGAGING
AUTOPILOT” alert sounds and the lateral and vertical flight director annunciations will display “LVL”. The
AFCS will remain in Level mode until the pilot selects another mode.
