ndBS
The NDB Information pane displays a map of the currently selected NDB and surrounding area, and the NDB
Information Screen on the Touchscreen Controller allows the pilot to view NDB information.

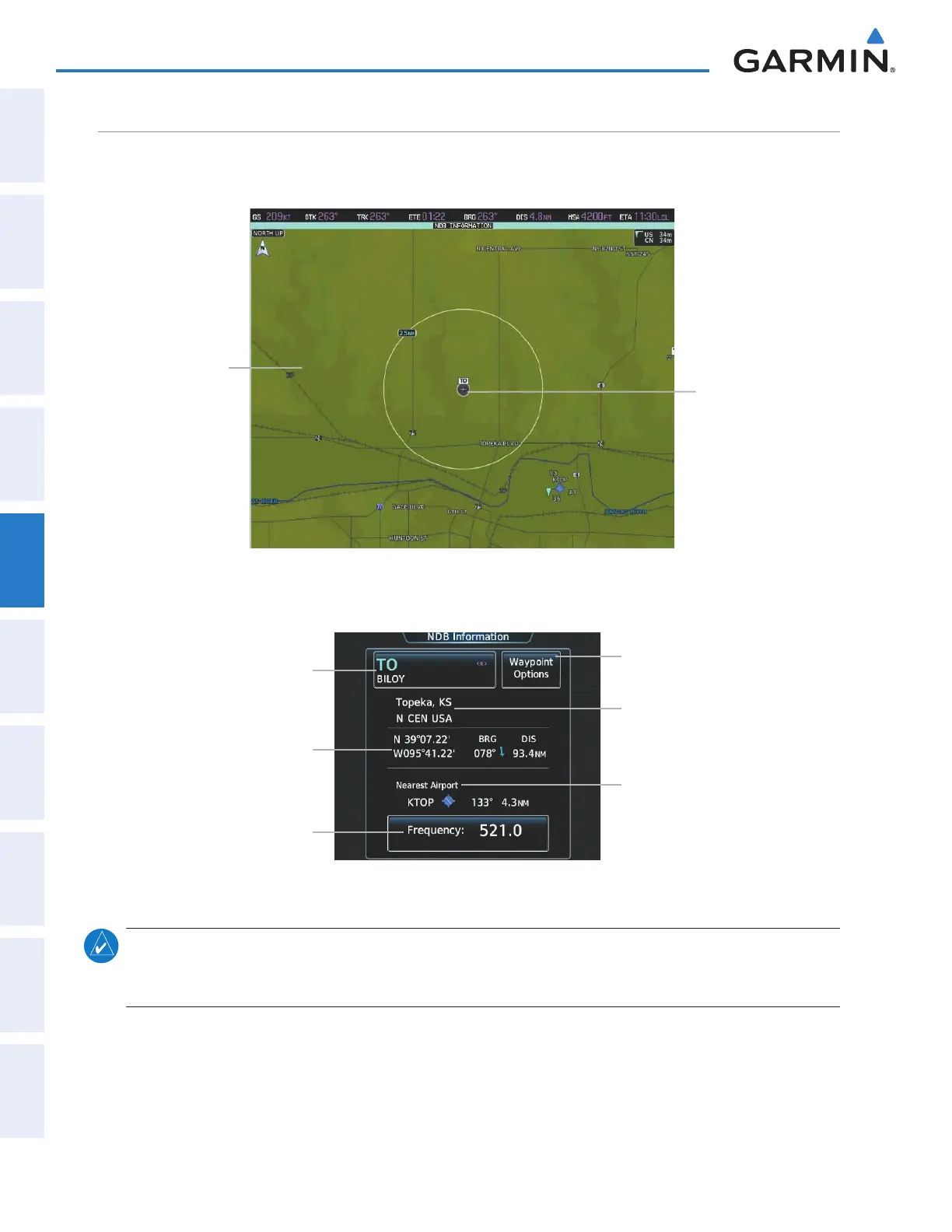

Figure 5-50 NDB Information Pane
Navigation Map
Showing
Selected NDB
Selected NDB
Figure 5-51 NDB Information Screen
Selected NDB Button
(Identifier, Name, Symbol)
NDB Latitude/Longitude,
Bearing & Distance
Waypoint Options Button
Direct-To, Insert in Flight Plan,
Show On Map
City, Region
Nearest Airport
Identifier
Symbol
Bearing/Distance
Frequency Button
Tune ADF1 Active/Standby
Add to Favorites
note: Compass locator (LOM, LMM): a low power, low or medium frequency radio beacon installed in
conjunction with the instrument landing system. When LOM is used, the locator is at the Outer Marker;
when LMM is used, the locator is at the Middle Marker.
