Roll Limit Indicators are displayed on the roll scale at 45° right and left, indicating where ESP will engage
(see Figure 8-85). As roll attitude exceeds 45°, ESP will engage and the on-side Roll Limit Indicator will move
to 30°, as shown in Figure 8-86. The Roll Limit Indicator is now showing where ESP will disengage as roll
attitude decreases.
Roll Limit Indicator
ESP Engage (45°)

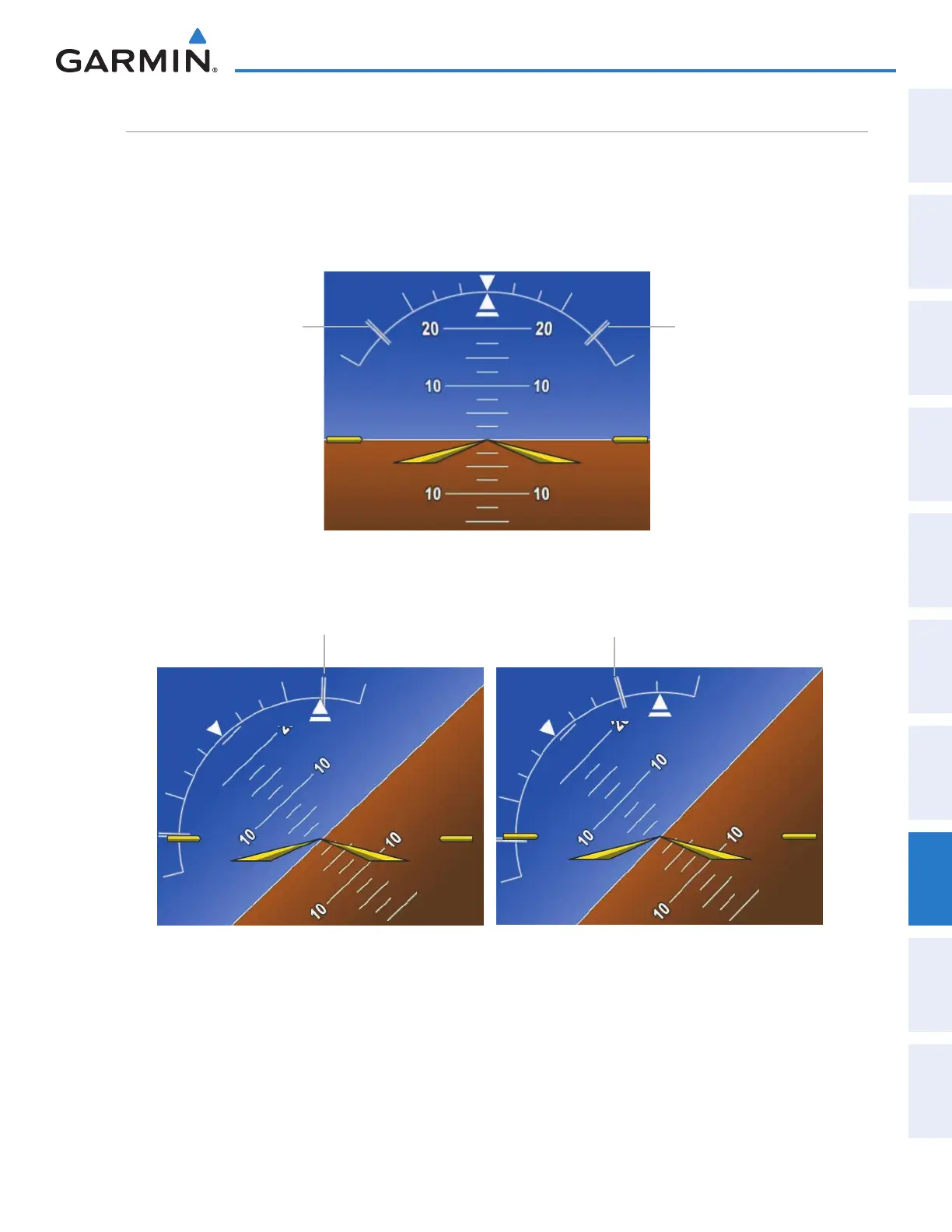

Figure 8-85 ESP Roll Engagement Indication (ESP NOT Engaged)
Roll Limit Indicator
ESP Engage (45°)
Before ESP Engage After ESP Engage
ESP Engage (45°)
Aircraft Roll Attitude = 44°
ESP Disengage (30°)
Aircraft Roll Attitude = 46°
Figure 8-86 Roll Increasing to ESP Engagement
